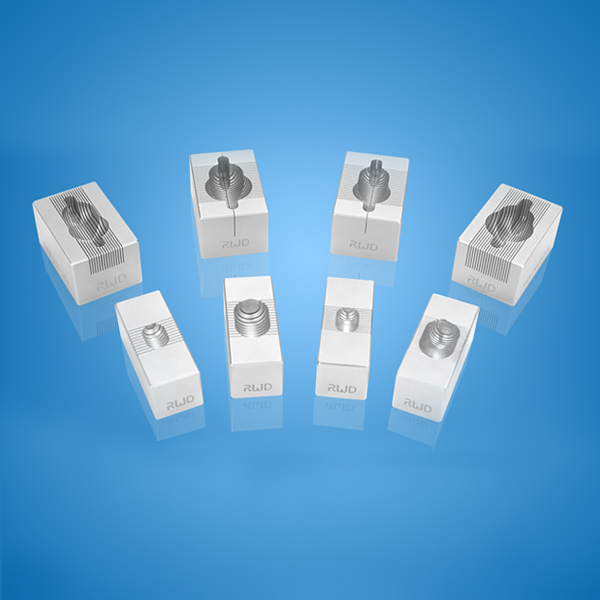

    Brain & Heart Matrices

    • RWD Brain and Heart matrices is made of stainless steel, electroless plating, through precision machining and highly polished, strong durability, which can be heated, chilled, autoclaved scrubbed and use in variety of harsh conditions. The surface will not be damaged by thermal pressure, and will not be damaged by mechanical impact, keeping the product in use for a long time
    • It can be used for the experiment on myocardial ischemia, ischemia reperfusion and other cardiac related experiments. It can also be chilled and used in experiments of freezing tissue.
    Quote

    Technical Specifications

    • Features
    • Order Information
    • Brain matrices have coronal sections and sagittal sections, each section can be as 0.5 mm or 1 mm. Widely use in preparing pathological tissue section and cut out TTC dyeing organization.
    • Heart matrices have coronal sections. The section can be as 0.5 mm or 1 mm. The mouse heart matrices are also suitable for neonatal rats.
    Model
    product description
    A(mm)
    B(mm)
    C(mm)
    D(mm)
    E(mm)
    Depth
    68707
    Brain Matrix-Mouse/40-75g/Coronal/1mm/Stainless steel
    3.18
    11.1
    8.73
    19.1
    12.5
    7.4
    68708
    Brain Matrix-Mouse/40-75g/Sagittal/1mm/Stainless steel
    3.18
    11.1
    8.73
    19.1
    12.5
    7.4
    68709
    Brain Matrix-Rat/175-300g/Coronal/1mm/Stainless steel
    4.76
    17.9
    14.7
    36.6
    27.35
    8.94
    68710
    Brain Matrix-Rat/175-300g/Sagital/1mm/Stainless steel
    4.76
    17.9
    14.7
    36.6
    27.35
    8.94
    68711
    Brain Matrix-Rat/300-600g/Coronal/1mm/Stainless steel
    4.76
    19.8
    14.7
    36.6
    25.7
    10.91
    68713
    Brain Matrix-Mouse/40-75g/Coronal/0.5mm/Stainless steel
    3.18
    11.1
    8.73
    19.1
    12.5
    7.4
    68719
    Heart Matrix-Mouse/Neonatal Rat/20-75g/Coronal/1mm/Stainless steel
    8.3
    12.7
    4.8
    68720
    Heart Matrix-Rat/175-400g/Coronal/1mm/Stainless steel
    12.7
    19.9
    9.6
    68721
    Heart Matrix-Mouse/Neonatal Rat/20-75g/Coronal/0.5mm/Stainless steel
    8.3
    12.7
    4.8
    68722
    Heart Matrix-Rat/175-400g/Coronal/0.5mm/Stainless steel
    12.7
    19.9
    9.6
