Laboratory Animals Brain Single Cannula

  • We offer standard and custom cannulas and cannula systems for laboratory animals including small animals and large animals (non-human primates).

Technical Specifications

  • Overview
  • Technical Parameters
  • Order information

Guide cannula Internal cannula Fixing screw Dummy cannula PU tube Plug Screw

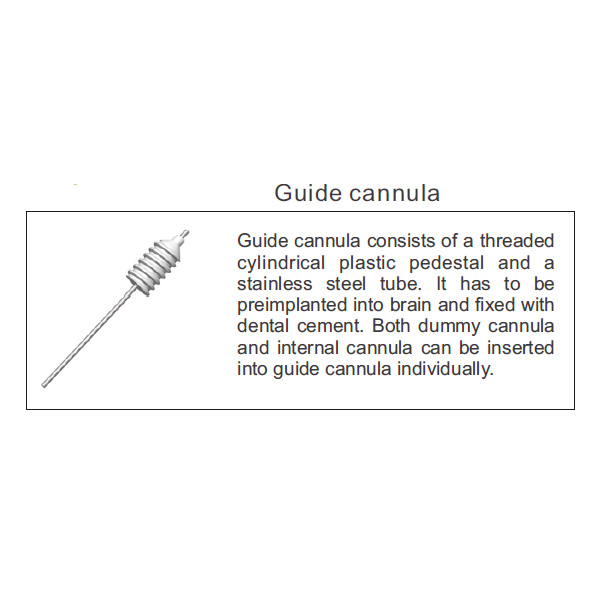

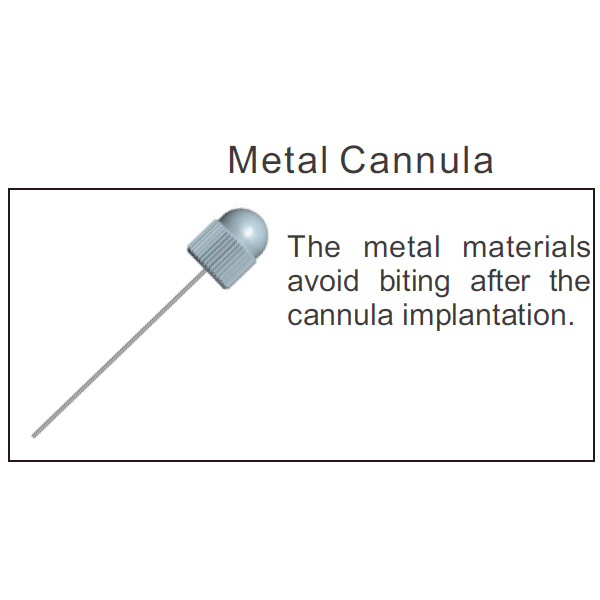

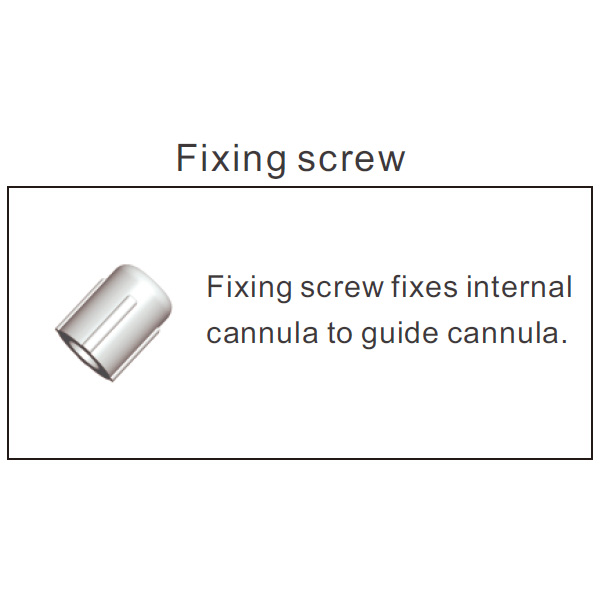

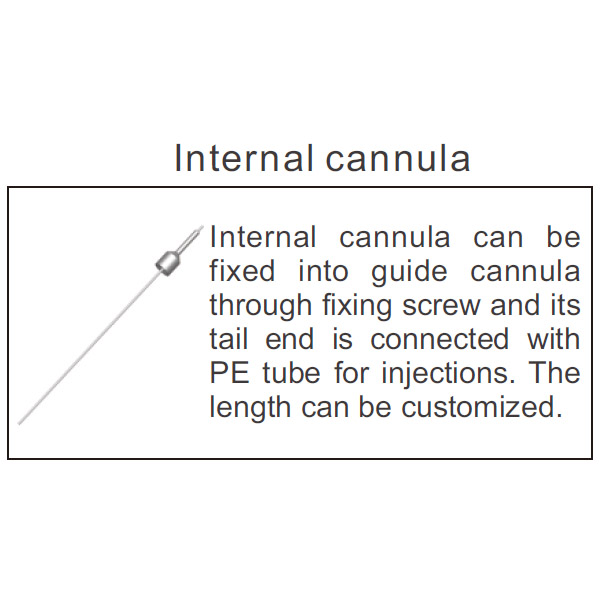

Guide cannula consists of a cylindrical base with threads and a thin stainless steel tube. It is pre-implanted intracranially and secured with dental cement around the injection orifice. Both dummy cannula and internal cannula can be inserted into the guide cannula individually for sealing or injections. Internal cannula connects with the guide cannula on one end and with PU tube on the other end for injections. Fixing screw is used to fix the relative position of the internal cannula and the guide cannula to ensure stable connection and avoid leakage. Dummy cannula is composed of a stainless steel wire and a threaded plastic cap. For use, it should be inserted in and fixed on the guide cannula to prevent tissue fluid from entering the catheter and causing it to become blocked. The length of the stainless steel wire can be customized or cut according to actual needs.Optional plastic or metal material (more durable). PU tube connects with the internal cannula on one end and syringe on the other end for drug injection. Plug connects with PU tube on the one end and with syringes of different sizes on the other end. Screw provides the dental cement with a point of strength to prevent it from falling off.

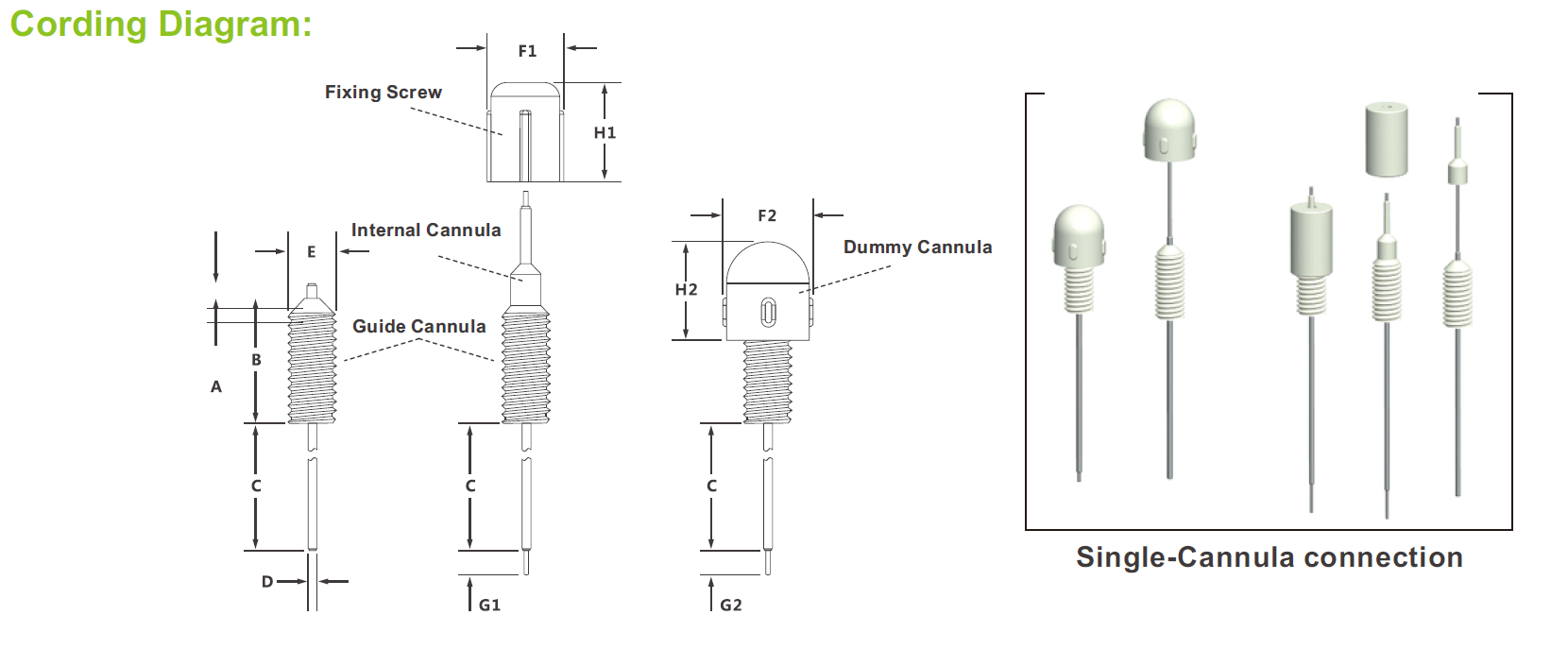

A – The length of the stainless steel tubing below the plastic pedestal
B – The height of the cylindrical plastic base.
C – The length of the stainless steel tubing below the plastic pedestal,can be customized.
D – External diameter of stainless steel guide cannulas.
E – External diameter of cylindrical plastic base.
F1 – External diameter of Fixing screw.
F2 – External diameter of Dummy Cannulas.
H1 – Height of Fixing screw.
H2 – Height of Dummy Cannulas.
G1- The internal cannulas projection length beyond the guide cannulas tip, can be customized.
G2- The dummy cannulas projection length beyond the guide cannulas tip, can be customized.

Guide cannula Internal cannula Dummy cannula Fixing screw A B C D E C2 C1 F2 H2 F1 H1
OD ID
62001 62201 62101 62502 1 6 20 0.64 0.45 3.5 21.7 23 5 7 5.5 7
62002 62202 62102 62502 1 6 22 0.56 0.38 3.5 21.7 23 5 7 5.5 7
62003 62203 62102 62502 1 6 15 0.48 0.34 3.5 21.7 23 5 7 5.5 7
62004 62204 62104 62502 1 6 33 0.41 0.25 3.5 21.7 23 5 7 5.5 7
62005 62201 62101 62502 0.6 6 32 0.71 0.45 3.5 21.7 23 5 7 5.5 7

cording-diagrm

Purchasing Steps:
Step 1:
Selecting the guide cannula size according to the experimental animal and the depth of the target brain region.
Guide cannula size selection for rat: 62005 (22G), 62001 (23G), 62002 (24G).
Guide cannula size selection for mouse: 62003 (26G), 62004 (27G).

Step 2:

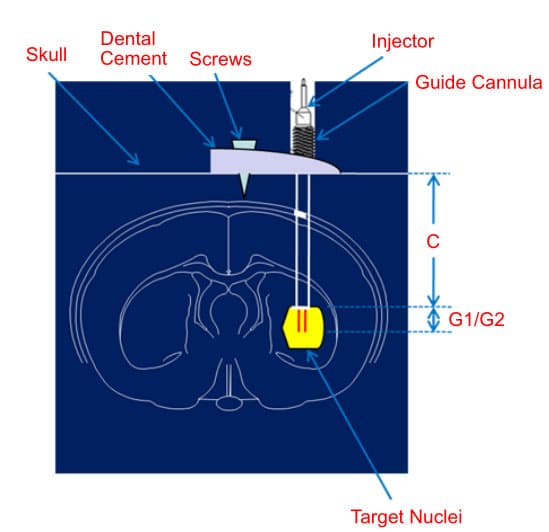

Determine the C value: length of the stainless steel tube of the Guide cannula. C = depth of target brain region + thickness of dental cement (0.5 ~ 0.8 mm) – G1.

Step 3:
Determine the G1 value:the length of the protruding part of the internal cannula when it is inserted into the guide cannula.Usually 0.5 mm or 1.0 mm is selected, and 0.5 mm is recommended.

Step 4:
Determine the G2 value: The length of the protruding part of the dummy cannula when it is inserted into the guide cannula.Usually 0, 0.5mm or 1.0 mm is selected, 0 mm is recommended.

Step 5:
Selecting the screws (recommended diameter slightly larger than the diameter of the skull drill), plugs, catheters, and other accessories.

Product
Type
Guide
cannula
(ODXID)
Internal
cannula
(ODXID)
Dummy
cannula
Fixing
screw
PU
tube
Plug Length customization range
(mm)
Plastic
OD
Metal
OD
C G1 G2
Single
cannula
62005(22G)
(0.71×0.45)
62201
(0.41×0.25)
62101
0.4
62106
0.4
62502 BC-22 P22-R/
P22-W
1~15 0,0.5~15 0,0.5~15
62001(23G)
(0.64×0.45)
62201
(0.41×0.25)
62101
0.4
62106
0.4
62002(24G)
(0.56×0.38)
62202
(0.36×0.2)
62102
0.3
62107
0.3
62003(26G)
(0.48×0.34)
62203
(0.3×0.14)
62102
0.3
62107
0.3
62004(27G)
(0.41×0,25)
62204
(0.21×0.11)
62104
0.2
62108
0.2



Screws:

Model Product Description
62513 Screw-M1.0xL2.0mm
62514 Screw-M1.2xL2.0mm
62515 Screw-M1.4xL2.5mm
