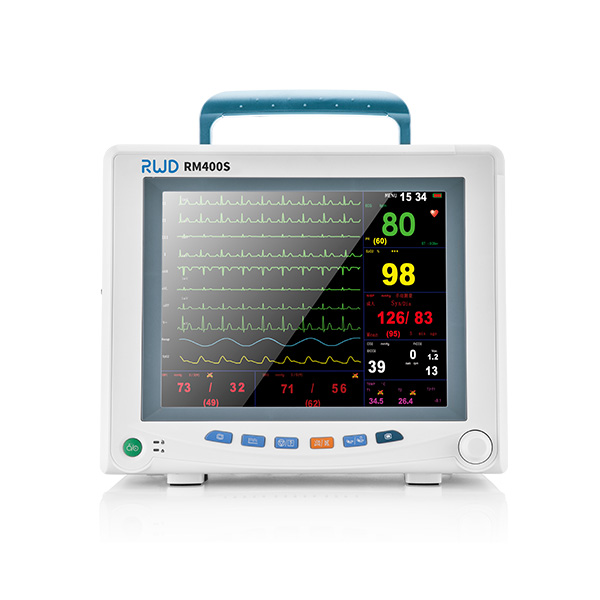

• 10.4″Color TFT-LCD screen, intuitive and easy to operate.
• Can store the trend data for 120 – 168 hours and has the function of displaying trend data
and trend graphs.
• Function of alarm event reviewing, can store 1000 – 1800 pieces of alarm events.
• Anti-perfusion digital blood oxygen saturation measurement, sensitive and reliable.
• Multiple measuring functions include 5-lead ECG/HR, RESP, TEMP, SpO2
/Pulse, NIBP.
• The complete builtin module design ensures stable performance, easy replacement and
maintenance.
• Multiple display methods to meet individual needs.
• Equipped with 5 cuffs of different sizes to meet the measurement needs of various body
types
• Unique all-lead ECG on-one-screen display, which can facilitate the diagnosis and analysis
of cardiac disease.
• High-Frequency Electro tome Resistant & Defibrillation Effects Resistant.
• With 270° degrees view alarm light design and 3 levels of alarm, it is clearer
Size and Weight
Size |
318 mm×264 mm×152 mm |
Weight |
4.5 kg |
Power supply
Power Voltage |
AC 100-240V |
Frequency |
50/60Hz |
Input current |
0.6A -0.3A |
Fuse |
T 2A/250V, integrated in the power module |
Earth leakage current |
<0.3 mA |
Safety class |
Category I |
Display
LCD |
Size |
12.1″ |
Type |
Color TFT-LCD |
Resolution |
800×600 pixels or higher |
Indicators |
Physiological alarm LED |
1(Yellow/Red) |
Technical alarm LED |
1(Blue) |
AC Power LED |
1 (Green/Orange) |
Battery Charge LED |
1 (Yellow) |
Interface
Power |
1 AC power inlet |
Wired network |
1, standard RJ45 socket |
Equipotential grounding terminal |
1 |
Battery
Type |
Rechargeable Lithiumion battery |
11.1V/4.0AH |
Charge time |
≤6 hours (2 batteries for 12 hours) |
Operating time under the normal use and full charge |
≥240 minutes(2 batteries for 480 minutes) |
New and fully charged battery at 25℃ ambient temperature and NIBP work on AUTO mode for 20 minutes interval. |
Operating time after the first alarm if low battery |
≥10 minutes |
SpO2
BLT-SpO2 |
Measurement Range |
0~100% |
Resolution |
1% |
Accuracy |
At 70~100%, ±2%
At 0~69%, unspecified |
Data update period |
<13s |
Alarm |
User-selectable upper and lower SpO2 limits |
PR |
Measurement Range |
25~250 bpm |
Resolution |
1 bpm |
Accuracy |
±1% or ±1 bpm, whichever is greater |
Data update period |
<13s |
Alarm |
User-selectable upper and lower pulse rate limits |
EtCO2 (Sidestream,BLT)
Measure method |
Infrared spectrum |
Measure mode |
Sidestream |
Measurement Range |
0.0~13.1% (0~99.6 mmHg) |
Resolution |
1 mmHg |
Unit |
%, mmHg, kPa |
Accuracy |
At <5 % CO2,±0.3% (±2.0 mmHg)
At ≥5 % CO2, < ±10 % of reading |
Range of respiration rate measurement |
3~150 rpm |
Calibration |
Offset calibration: auto, manual
Gain calibration |
Range of alarm |
0.0~13.1 % (0~99.6mmHg), continuously adjustable between upper limit and lower limit |
Alarm indication |
Sound and light indication |
EtCO2 (Mainstream,CAPNOSTAT5)
Measure method |
Infrared spectrum |
Measure mode |
Mainstream |
Warm up time |
Capnogram displayed in less than 15 s, At an ambient temperature of 25 ℃ , full specifications
within 2 minutes. |
CO2Measurement Range |
0 ~ 19.7%(0 ~ 150 mmHg) |
CO2 Resolution |
1mmHg |
CO2 Accuracy |
0 ~ 40 mmHg, ±2 mmHg
41 ~ 70 mmHg, ±5% of reading
71 ~100 mmHg, ±8% of reading
101 ~ 150 mmHg, ±10% of reading Temperature at 35℃. |
CO2 Stability |
Short-Term Drift: Drift over four hours≤0.8 mmHg. Long-Term Drift: Accuracy specification will be maintained over a 120 hours period. |
Rise time |
<60ms |
unit |
%, mmHg, kPa |
Respiration Rate Range |
0~150 rpm |
Respiration Rate Accuracy |
±1 rpm |
Alarm indication |
Sound and light indication |
Recorder (optional)
Type |
Thermal dot array |
Paper width |
50 mm |
Recording waveform |
Single track, 3 tracks |
Recording speed |
12.5mm/s, 25mm/s, 50mm/s |
