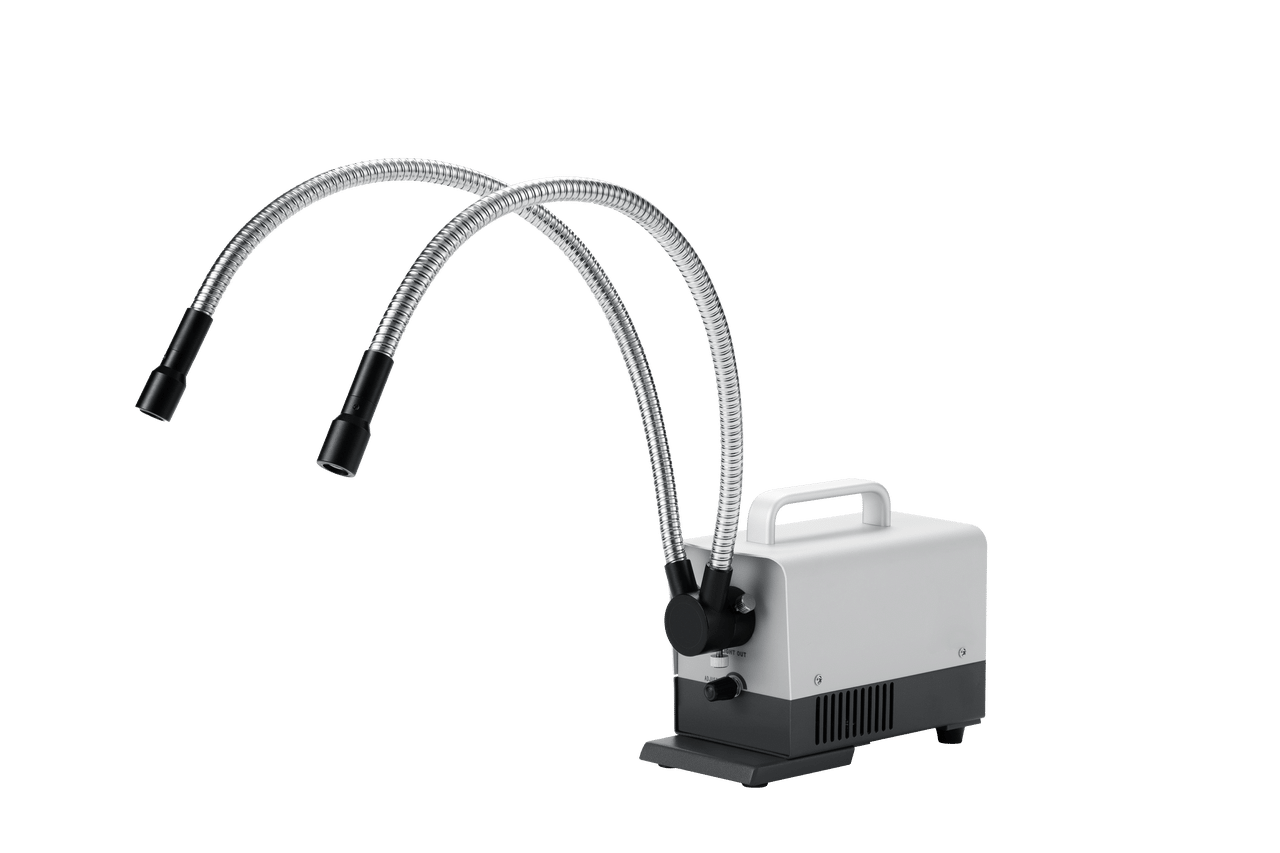

    76316 LED Fiber Optic Illuminator

    It can be used for microscope lighting, industrial electronic testing or stereoscopic microscope lighting.

    Quote

    Technical Specifications

    • Features
    • Technical parameters
    • Order Information
    This product uses 20W LED light source. High luminous efficiency, high illumination.
    It’s mainly composed of light source, heat release part, power and case.
    It is small and light-weight, easy to carry.
    The heat can release quickly and efficiently as strong heat release design of fan series and chassis heat release.
    It adopts wide voltage input, low voltage output. The performance is safe and stable.
    It’s can used with Y-type fiber or single hard fiber for microscope lighting and industrial electronic testing. If with annular fiber, it can be used for stereoscopic microscope lighting.
    Voltage: AC: 100-240V 50/60Hz；
    Linear continuous dimming, no stroboscopic effect；
    Input power: 30W；
    Bulb power: LED 20W；High-power LED white light, with a light intensity of less than 80Lm；
    Cooling method: Low-noise fan；
    Overall noise level: <55db
    Fuse: F3AL 250V
    C.T. : 5000-6000K; color rendering index >80%；
    LED lifespan: 20,000 hours
    Image plane illumination: ≥21,600,000 Lux
    Security type: class 1
    Order Information
    Model
    Product Description
    Remarks
    76316
    LED Fiber Optic Illuminator, 20W, 100-240V
    Includes a main unit and dual optical fibers
