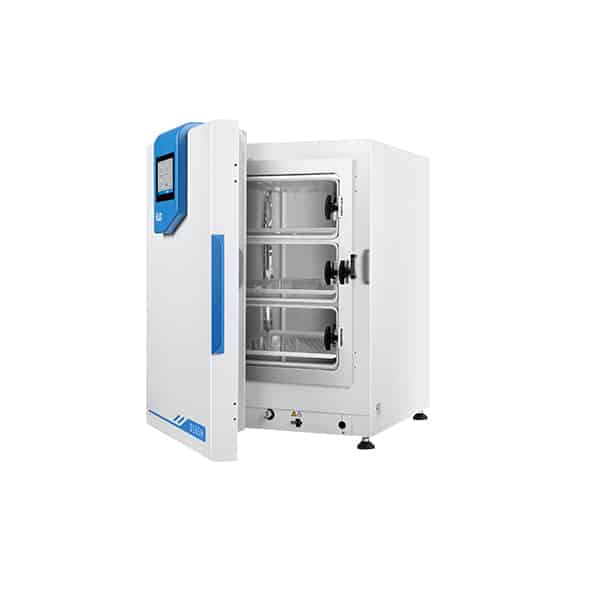

The RWD D165HT CO₂ incubator for cell culture achieves precise three-gas control by regulating the input of CO₂ or N₂. RWD D165HT CO₂ incubator for cell culture provides a controlled oxygen culture environment for specific cell tissues,better simulating the in vivo cell environment and enhancing cell growth performance.
RWD D165HT CO₂ incubator for cell culture is upgraded to 180℃ high-temperature sterilization, effectively killing 99.99% of microorganisms.
RWD D165HT CO₂ incubator for cell culture uses direct hot-water reservoir humidification to ensure more precise humidity control.
RWD D165HT CO₂ incubator for cell culture adopts three small doors, which cause less disturbance when opening and closing.
More flexible gas configuration
Optional oxygen control module can simulate the low oxygen environment of cells in the body, promoting the rapid and healthy growth of primary cells, stem cells, and embryonic cells. The oxygen detector uses a durable zirconia sensor to ensure precise and stable control of O2 concentration.
More effective sterilization procedure
The 180°C dry heat sterilization program can efficiently kill fungi,molds,bacteria,and their spores.It has been validated by a third party,ensuring a sterilization effectiveness of up to 12log SAL.The entire process takes approximately 12 hours.
More efficient humidity control

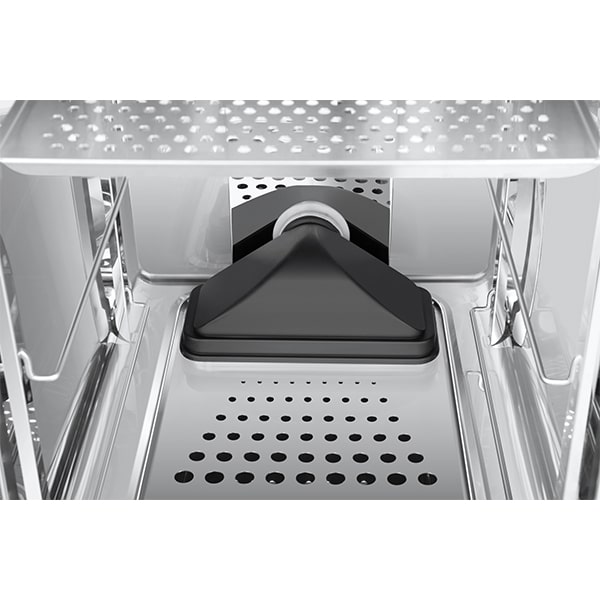

The reservoir design enhances internal space efficiency and accelerates humidity recovery by five times compared to standard water pans.After a 30-second door opening,relative humidity is restored within 10 minutes.The system monitors water levels in real-time to ensure timely refilling and maintain optimal humidity.It also features a low-humidity mode to prevent condensation and contamination.
More energy-efficient internal door accessories
Optinonal triple small-section door design not only effectively reduces the amount of air exchange each time a door is opened,thereby lowering the risk of fluctuations in the internal environment,but also significantly enhances the convenience and safety of operations.
A brand-new software upgrade
The R-Link intelligent cloud-based control system allows you to monitor the device status anytime and receive real-time alarm notifications on your mobile device, ensuring timely handling and safeguarding the samples.
| Parameters | Size & Weight | Interior Volume | 170L |
| Internal dimensions | 47.0(W)×57.0(D)×60.0(H) cm | ||
| External dimensions | 69.0(W)×87.0(D)×93.0(H) | ||
| Net Weight | 110KG | ||

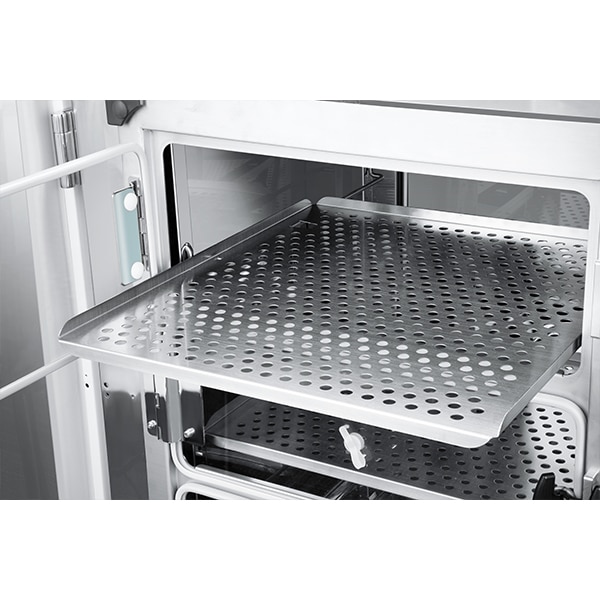

| Shelves | Number (Standard & Max) | 3, up to 11 | |
| Dimensions | 41.8*46.5cm；1943.7cm2 | ||
| Load bearing | 16 kg/sheet | ||
| Temperature | Heating Method | Gas jacket direct heating | |
| Sensor | Dual Pt1000 platinum thermistor | ||
| Controller | PID | ||
| Control & Range | ± 0.1 ℃ @37 ℃, 3 ℃ -55 ℃ higher than ambient temperature | ||
| Uniformity | ±0.25℃@37℃ | ||
| CO2 Concentration | Control & Range | ±0.1%@5%，0 ~ 20% | |
| Sensor | 190 ℃ high temperature infrared (IR) probe | ||
| Input pressure | Recommended 0.08~ 0.1 Mpa | ||
| Uniformity | ±0.3% | ||
| Readability & Setability | 0.1% | ||
| Humidity | Moisturizing mode | Integrated reservoir | |
| Relative humidity | ≥93% | ||
| Volume | 3.8L | ||
| Display | Water level display | ||
| O2 control | Control and scope | ± 0.1%, 1% to 21% (hypoxia) | |
| Sensor | Zirconia | ||
| Input pressure | Recommended 0.08~ 0.1 Mpa | ||
| Antifouling control | Sterilization temperature | 180 ℃ high temperature dry heat sterilization | |
| Sterilization time | About 12 hours | ||
| Filter | 0.3 µm HEPA high-efficiency filter | ||
| Security settings | Temperature alarm setting | User customizable, upper limit: (T + 0.1)~ (T + 5.0); lower limit: (T-0.1)~ (T-5.0) | |
| CO2 alarm settings | User customizable, upper limit: (T + 0.1%)~ (T + 1.0%); lower limit: (T-0.1%)~ (T-1.0%) | ||
| Humidity alarm settings | Low water level alarm | ||
| Door alarm settings | Alarm prompt 2 minutes after opening the door | ||
| Safety door lock | During high-temperature sterilization, the internal cavity temperature exceeds 65 ℃ and automatically locks | ||
| Software settings | Display control | High definition touch screen | |
| Data storage and export | Equipped with R-link IoT module, it can view equipment operation status and receive equipment alarm data through mobile end or fixed end point. The screen can display parameter data within one month and automatically record parameter data within six months. It records once per minute and can also record alarm records and operation records within six months. |
The 180°C sterilization design of the RWD CO2 incubator makes sterilization more effective, and the temperature is also very accurate. When the mouse embryo is cultured in vitro before implantation, the problem that the embryo cannot develop normally to the blastocyst has been encountered. Try the RWD incubator, whose precise temperature and gas concentration control enables the small embryo to develop normally to the embryo.
Peking University
RWD's two incubators are touch screen design, the operation is silky, you can see the operation status of the equipment at a glance, the temperature control is quite accurate, and the gas recovery is also very fast, these two cells are commonly used in our laboratory, and the growth is very good.
The Second Affiliated Hospital of Chongqing Medical University
