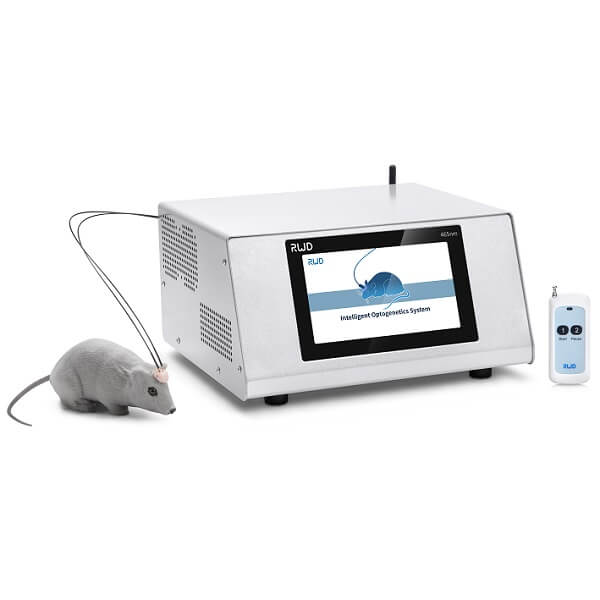

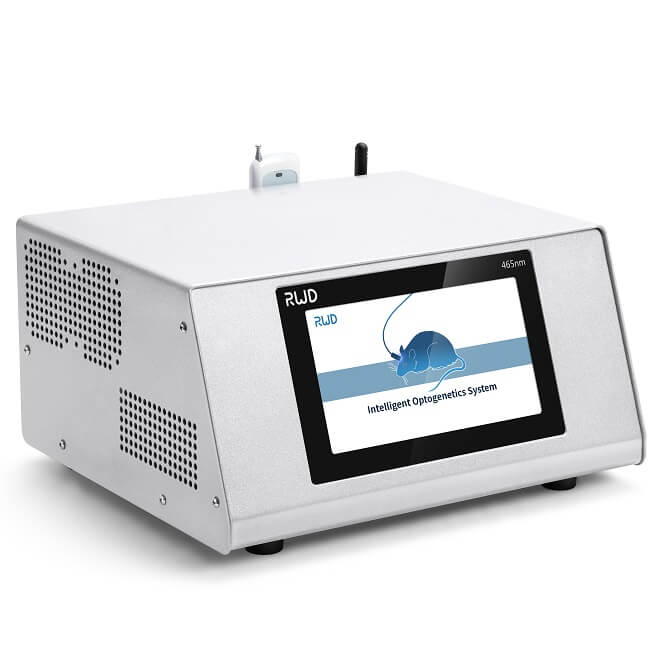

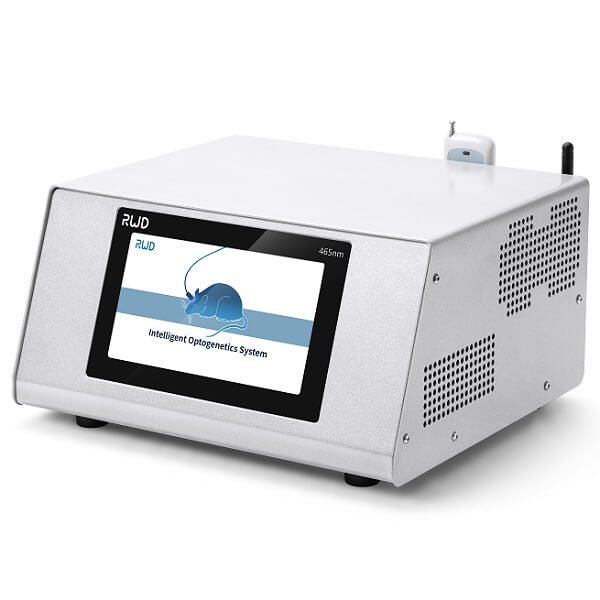

IOS-465/589/635 Intelligent Optogenetics System

RWD new intelligent optogenetics system, on the basis of the last generation of integrated machines (laser and waveform generator integrated into one), has made another leap in the promotion. The new system is equipped with remote control function, one-click test conversion and three signal triggering modes to meet diversified experimental requirements. Using this instrument, it can reduce the interference of human factors to animal behavior experiment, and the unique test program and experiment record output view function are more conducive to experiment management.

Technical Specifications

  • Description
  • Features and Benefits
  • Specification

Optogenetics uses light-responsive proteins to control biological processes. Using genetic methods to express light-sensitive channel proteins in specific cell populations, these light-sensitive channel proteins will open under specific wavelengths of light to pump protons out of the cell, or anions (such as Cl-), cations (such as Na + and K +) pumped into the cell to hyperpolarize or depolarize the cell, so that the cell can be inhibited or excited instantly. The unmatched spatiotemporal precision, high tunability, reversibility, and few side effects of light makes optogenetics a powerful strategy to study neuroscience and complex biological systems. For these reasons, optogenetics has already revolutionized disciplines such as neuroscience, developmental biology, and cell signaling, and is poised to do the same with cellular metabolism. The following are common research directions, for example neural circuit basic research, learning and memory research, addiction research, dyskinesia, sleep disorder, Parkinson’s disease model, depression and anxiety animal models and other applications.

High Stability

——Ensure that the regulation effect is consistent during the experiment

Remote Control

——Avoid more human factors in animal behavioral experiments

Fast Response

——Reduce the time lag between animal behavior and optogenetic regulation

Multiple Trigger Modes

——Meet diversified experimental requirements,such as electrophysiology,, fiber photometry etc.

Power:0-100mW(IOS-635 is 1-60mW adjustable),1mW resolution


Remote control:10m



Trigger mode:Edge/Real-Time/Gate

Edge mode1If the trigger voltage is higher than or equal to the set value of trigger voltage, the program will run; the trigger is only featured by the “on” function and the program’s duration depends on its set duration.

Real-time mode2If the trigger voltage is higher than or equal to the set value of trigger voltage, the program will run; if it is lower than that value, the program will stop; the trigger is featured by the “on/off” functions. The program’s duration depends on the trigger’s duration.

Gate mode3the running power relies on the first subprogram selected and other parameters are defined by the external device, and only square wave at the frequency ≤500Hz are responded to.

Safety:password;high temperature alarm;program run prompt

Storage:internal memory/ USB flash disk

Wavelength:450, 465, 532, 589 , 630 and 635nm (One wavelength can be selected per instrument)
