Minux® Rotary Microtome S712
Minux® Rotary Microtome S712
control box
Minux® Rotary Microtome S712
Minux® Rotary Microtome S712
control box

Minux® Rotary Microtome S712

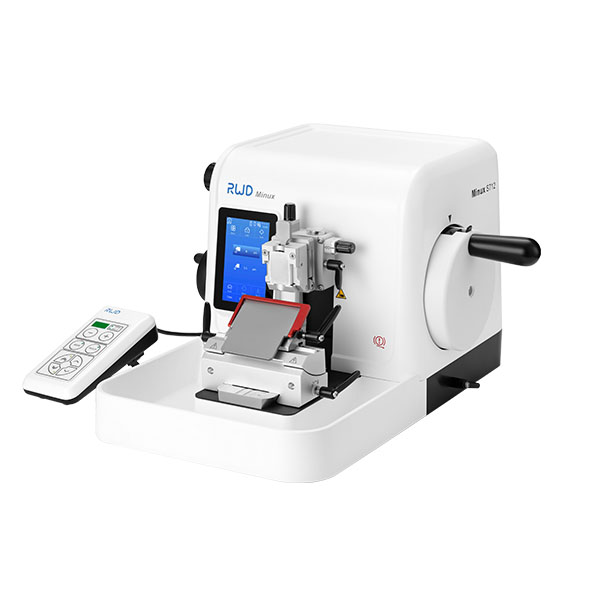

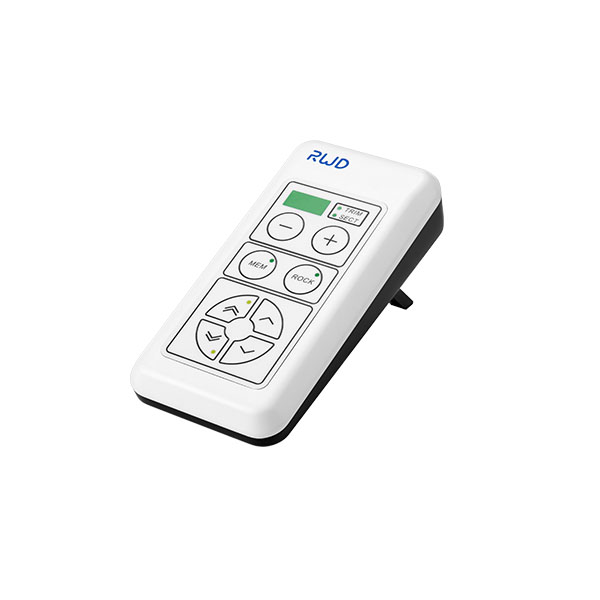

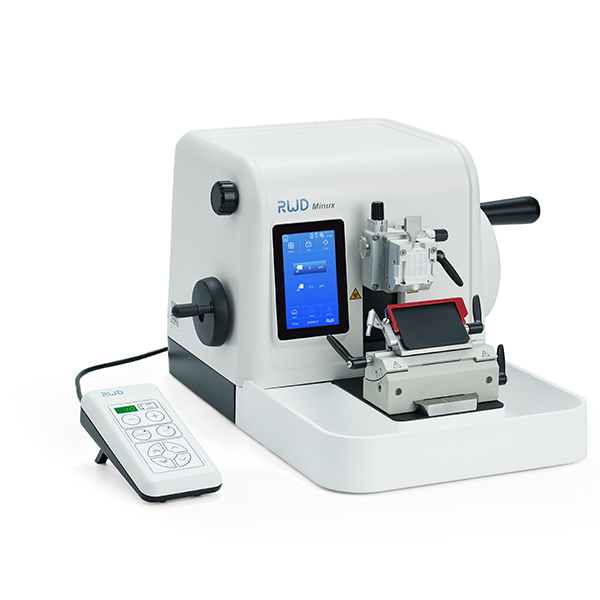

The S712 rotary microtome offers a combination of manual sectioning and semi-automated setup, meeting operators’ different habits. Its separate control panel allows for sample advance and retreat, trimming and sectioning conversion, thickness adjustment, position memory and half-knife function.
Moreover, the historical record system shows operation and alarm logs on a 5-inch touch screen to query the microtome usage and facilitate information tracking. Then low-cost maintenance can be achieved.

The 2-in-1 blade holder satisfies the use of high and low-profile blades.

Get a Quote

Advantages

Precise

Precise sampling system: Precise cross roller bearings and screw rod, combined with a five-phase high-resolution stepper motor and a Link block made of aviation aluminum, form a high-precision sampling system to ensure section quality. Stable gantry structure design, high hardness alloy transfer, improve the rigidity of the host, and the hard tissue section is still accurate. Precise knife holder: The position change is extremely small after changing the knife edge by moving sideways. Scales on the knife holder to determine the best position of the blade holder.

Safe

Dual Handwheel lock on top of the handwheel, safe to replace the sample. Any position lock to brake the handwheel in any position. The handwheel can be stopped at any position, making it more secure to use. The knife guard covers the full length of the blade to avoid potential injury during operation.

Convenient

Unique visual pointer, visible angle adjustment. Sample positioning is faster and more precise. Adjust multiple devices to the same angle easily and quickly. The small handwheel injection method is used with the side knob to adjust the slice thickness, which is ergonomically designed and the operation is more comfortable. The single-turn sampling distance of the small handwheel can be adjusted to meet individual needs. The torque at any position is lower than 2.5 kgf·cm, the operation is easy, and it is easy to use all day.

Easy to clean

With magnetic function, easy to disassemble and install. Large capacity, special coating waste tray, easy to clean up, shorten the cleaning time to a few seconds.

Information backtracking

With historical record system, operation and alarm logs are show on 5-inch touch screen, to query the microtome usage and facilitate information tracking.

Specifications

Specifications
Available accessories
Description model notes
Universal clamp S700-F3 same as S700/S700A
Standard clamp S700-F4
Blade holder assembly S700-F2
Blade holder upper bracket S700-F8
Quick Compare Chart
Section thickness range: 0.5 – 100 µm
Trimming section thickness range: 1 – 800 µm
Electric coarse feed: 100-3000 μm/s adjustable
Specimen retraction: 0 – 250 µm adjustable
Horizontal feed: 28 mm
Vertical stroke: 70 mm
Specimen orientation: X/Y axis 8°
Maximum specimen size: 60*50*40 mm
W x Dx H: 490*430*315 mm
Machine Weight:30 kg
Rock mode
Position memory function
