New Product| RFLSI ZW Laser Speckle Contrast Imaging System – An Unparalleled Imaging Experience

   |  November 22, 2022

RWD is going to debut the third-generation Laser Speckle Contrast Imaging System- RFLSI-ZW. The new version inherits the advanced technicals of RFLSI Ⅲ, offering powerful performance and enhanced functionality for an optimized experience to speed up your research, and maintaining its continuous influence and supporting role in the field of microcirculation research.

The eye-catching upgrades of the third-generation RFLSI-ZW include:

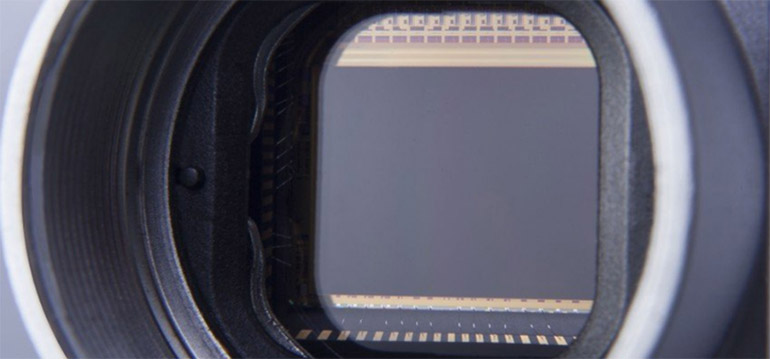

Highlight 1: Faster Global Shutter CMOS Sensor

The RFLSI ZW adopts a new global shutter CMOS sensor with higher quantum efficiency, which enables significantly less noise and sharpens images even in a short exposure time. With a global shutter camera featuring higher data transmission speed, RFLSI ZW can acquire images at a speed 3 times higher than that of the previous version in high-resolution mode.

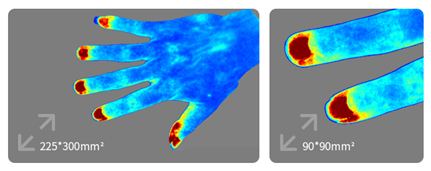

Highlight 2: Larger Blood Flow Image Size

The maximum imaging size of the RFLSI ZW is 225mm*300mm, which is nearly 8 times wider than that of the RFLSI Ⅲ. The imaged object range is extended from small animals to large animals and parts of the human body. The scope of application got further expanded.

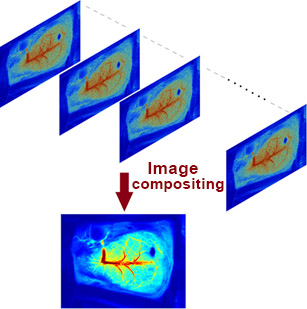

Highlight 3: Better Upgraded Imaging Algorithm

The RFLSI ZW laser speckle blood flow imaging system has further improved its imaging algorithm. Compared with that of the RFLSI Ⅲ, the number of image syntheses have been increased by 5 times in the spatial algorithm mode and 24 times in the temporal algorithm mode, getting higher resolution with more amplified details.

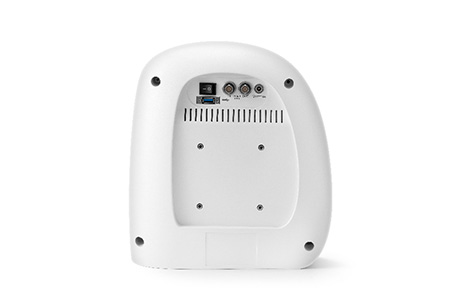

Highlight 4: Wider Extensibility

The device is provided with a BNC extended interface to communicate with external devices, such as electrophysiology equipment, stimulator, syringe pump, optogenetic equipment, etc. Based on the software control protocol, the working sequence, interval, frequency and other parameters of the equipment can be customized to meet the diversified experimental requirements.

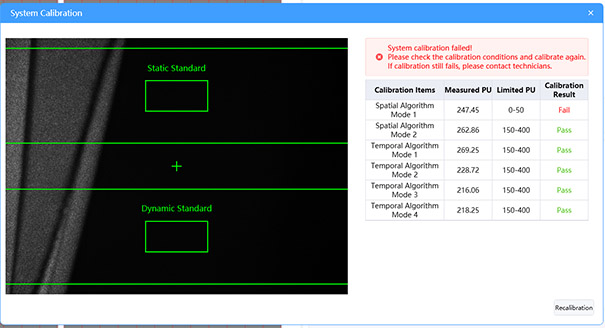

Highlight 5: Smarter Built-in Calibration Program

Along with standard calibrators and the calibration program, the product can be regularly self-calibrated to keep itself in the best working condition, enabling the perfusion parameters and blood flow maps obtained at different periods could be compared.

Highlight 6: Safer Laser – Better safety and security

This new-generation laser speckle blood flow imaging system RFLSI ZW has been upgraded in terms of safety. It meets the Class1-IEC 60825-1:2014 standard and is secure to use, further ensuring the safety of experimenters.

RFLSI ZW Laser Speckle Blood Flow Imaging System

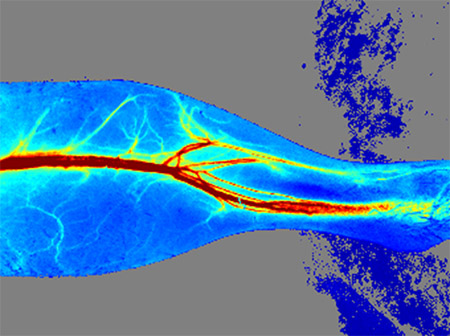

Renderings for Reference

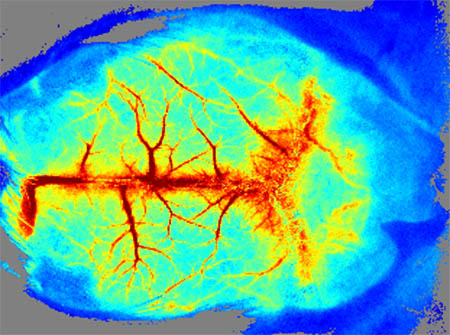

Brain-c57bl/6

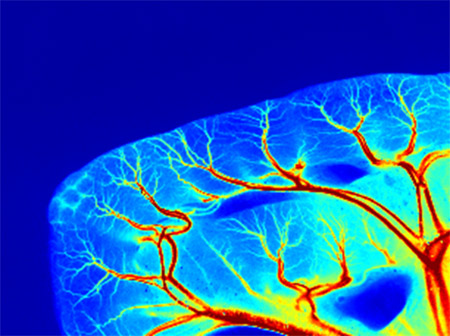

Mesentery-SD rat

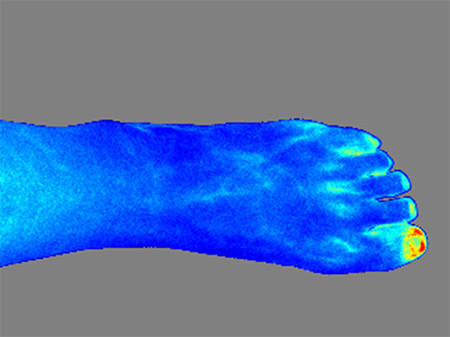

Foot-Human
Femoralartery-c57bl/6

In addition to the six highlights above, more upgrade details are shown below.

ModelRFSLI ZWRFLSI Ⅲ
Monitoring range0-5000 PU0-5000 PU
Max. sample rate (standard-Full Field)100FPS35 FPS
Max. sample rate (high resolution-Full Field)50FPS15FPS
Max. number of images synthesized – spatial algorithm37560
Max. number of images synthesized – temporal algorithm150060
Optical zoom10X12X
Focus methodAuto focusAuto focus
Focus speed4s10s
Resolution2064*15442048*2048
Type of cameraGlobal Shutter CMOS CameraCMOS Camera
Monitoring laser785nm785nm
Indicating laser650nm*2650nm*1
Laser safety classClass 1Class 2
Working distance10-40cm10-35cm
Max. image size22.5×30 cm29×9 cm2
Extensibility2*BNC trigger interfaceNo
Self-calibrationYesNo
Video magnification0.25, 0.5, 1, 2, 4, 8, 16, 32, 640.5, 1, 2, 3, 4, 5
Heat-dissipating methodSemiconductor refrigerationAir cooling
Working distance measurementYesNo
Light intensity gain compensationYesNo
Background removalYesNo
Automatic threshold settingYesNo
Acquisition and analysisOnline acquisition, online analysis and offline analysisOnline acquisition and offline analysis
