    Digital Stereotaxic Instruments

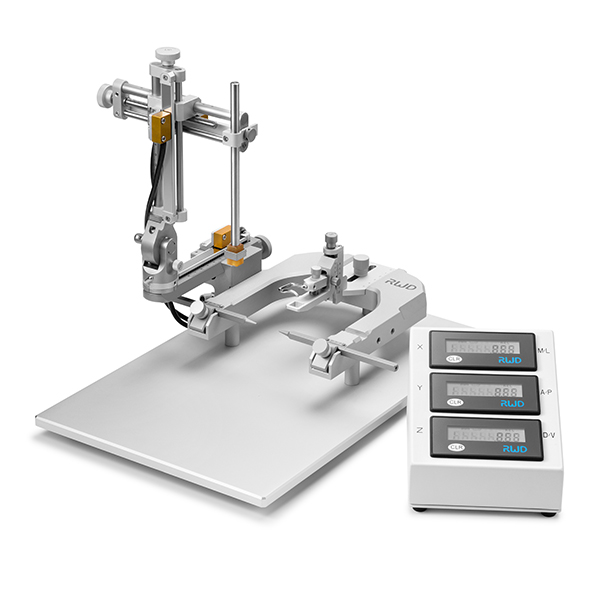

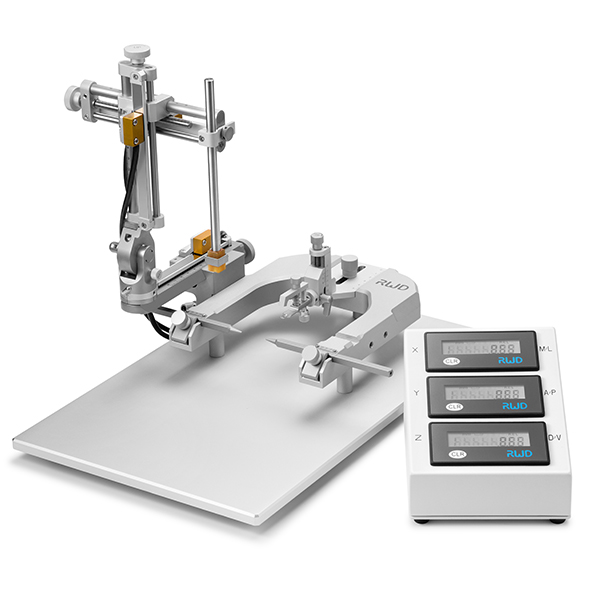

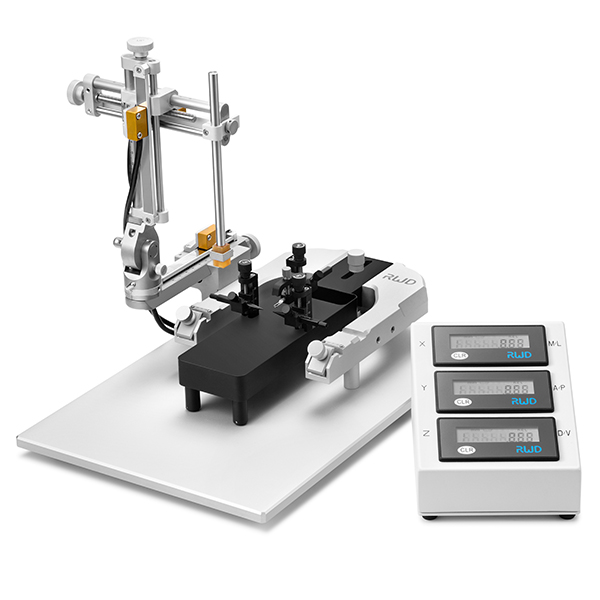

    The desktop digital stereotaxic instrument adds a digital display module on the basis of the standard type. The displacement sensor can display the displacement more accurately, reducing the tedious steps of manual reading. The displacement accuracy reaches 10 μm, and the origin can be set arbitrarily within the range.

    Quote

    Technical Specifications

    • Technical Specifications
    • Order Information
    • Manual
    • References

    1. Adaptors available for rat, mouse, rabbit, guinea pig, etc.

    2. LCD digital display, real-time shows displacement distance, accuracy 10μm

    3. One key to reset, no secondary readings and calculations

    4. Powered by AA battery, no electronic interference

    5. Working distance in each dimension is 80 mm with precise alignment to 0.1mm resolution.

    6. Vertical direction: 180° rotation and lock at any angles.

    7. Horizontal direction: 360° rotation and lock at any angles.

    8. Dual-lead screws ensure stable, accurate and smooth manipulation.

    9. Accuracy and flexibility can be maintained at variable temperatures.

    10. Extended base plate (400mm x 255mm) is applicable for a variety of animal sizes.

    11. Unique anti-clockwise UP mark engraved in the knob prevents incorrect operation.

    12. Vertical lock and fixing knob are separated to ensure accurate function at any angle.

    13. To ensure a precise designed lateral rotation operating space, the distance between knob and the U-shaped frame is 28mm.

    14. Laser engraved scales enable comfortable reading.

    15. Curved nose clamp design secures the head of animals.

    16. Ear bar locked plate pressing instead of clamping ensures more stability.

    17. Syringe pump, micro camera and drill can be attached to instruments.

    Category Model Product Description Remark
    Stereotaxic host
    (without accessories)    		 68803 Desktop digital stereotaxic in strument, SGL M Standard configuration, contains 68861N base, 68409 3-axis digital manipulator-left, without adaptor, ear bars, holder and mask.
    68804 Desktop digital stereotaxic in strument, Dual M Standard configuration, contains 68861N base, 68409 3-axis digital manipulator-left and 68410 3-axis digital manipulator-right, without adaptor, ear bars, holder and mask.
    Required accessories (optional)* 68055 Mouse Adaptor
    68030 Mouse/Neonatal Rat Adaptor
    68057 Mouse Anesthesia Adaptor
    68021 Rat Adaptor
    68053 Rat Anesthesia Adaptor
    68301 Rat 18° Ear Bars
    68306 Mouse 60° Ear Bars
    68201 Standard Probe Holder-Corner, clamping range: 0.3-1.5mm.
    68217 Cannula Holder, clamping diameter: 3.5mm. The clamping part is made of plastic.
    68205 Cannula Holder, clamping diameter: 3.5mm. The clamping part is made of metal.
    68214 Ceramic Ferrule Holder, clamping diameter: 1.25mm.
    68215 Ceramic Ferrule Holder, clamping diameter: 2.5mm.
    68206 General Probe Holder, clamping range: 3-12mm.
    68218 Syringe Holder, the syringe barrel clamping range is 6mm-12mm, and
    the syringe needle clamping range is 0.3mm-1.5mm.
    68605 Microdrill Holder, clamping diameter: 14.5mm. Suitable for 78001 microdrill.

    *Indicates that other specifications can be selected, which can be viewed from the product catalog of RWD.

    1. Yang Y, Cui Y, Sang K, Dong Y, Ni Z, Ma S, Hu H. Ketamine blocks bursting in the lateral habenula to rapidly relieve depression. Nature. 2018 Feb 14;554(7692):317-322.
    2. Cui Y, Yang Y, Ni Z, Dong Y, Cai G, Foncelle A, Ma S, Sang K, Tang S, Li Y, Shen Y, Berry H, Wu S, Hu H. Astroglial Kir4.1 in the lateral habenula drives neuronal bursts in depression. Nature. 2018 Feb 14;554(7692):323-327.
    3. Zhou H, Xiong GJ, Jing L, Song NN, Pu DL, Tang X, He XB, Xu FQ, Huang JF, Li LJ, Richter-Levin G, Mao RR, Zhou QX, Ding YQ, Xu L. The interhemispheric CA1 circuit governs rapid generalisation but not fear memory. Nat Commun. 2017 Dec 19;8(1):2190.
    4. Huang L, Yuan T, Tan M, Xi Y, Hu Y, Tao Q, Zhao Z, Zheng J, Han Y, Xu F, Luo M, Sollars PJ, Pu M, Pickard GE, So KF, Ren C. A retinoraphe projection regulates serotonergic activity and looming-evoked defensive behaviour. Nat Commun. 2017 Mar 31;8:14908.
    5. Liu Y, Lai S, Ma W, Ke W, Zhang C, Liu S, Zhang Y, Pei F, Li S, Yi M, Shu Y, Shang Y, Liang J, Huang Z. CDYL suppresses epileptogenesis in mice through repression of axonal Nav1.6 sodium channel expression. Nat Commun. 2017 Aug 25;8(1):355.
    6. Wang GQ, Cen C, Li C, Cao S, Wang N, Zhou Z, Liu XM, Xu Y, Tian NX, Zhang Y, Wang J, Wang LP, Wang Y. Deactivation of excitatory neurons in the prelimbic cortex via Cdk5 promotes pain sensation and anxiety. Nat Commun. 2015 Jul 16;6:7660.
    7. Li WG, Liu MG, Deng S, Liu YM, Shang L, Ding J, Hsu TT, Jiang Q, Li Y, Li F, Zhu MX, Xu TL. ASIC1a regulates insular long-term depression and is required for the extinction of conditioned taste aversion. Nat Commun. 2016 Dec 7;7:13770.
    8. Hao X, Gu H, Chen C, Huang D, Zhao Y, Xie L, Zou Y, Shu HS, Zhang Y, He X, Lai X, Zhang X, Zhou BO, Zhang CC, Chen GQ, Yu Z, Yang Y, Zheng J. Metabolic Imaging Reveals a Unique Preference of Symmetric Cell Division and Homing of Leukemia-Initiating Cells in an Endosteal Niche. Cell Metab. 2019 Apr 2;29(4):950-965.
    9. Diao Y, Cui L, Chen Y, Burbridge TJ, Han W, Wirth B, Sestan N, Crair MC, Zhang J. Reciprocal Connections Between Cortex and Thalamus Contribute to Retinal Axon Targeting to Dorsal Lateral Geniculate Nucleus. Cereb Cortex. 2018 Apr 1;28(4):1168-1182.
    10. Chen X, Guo Y, Feng J, Liao Z, Li X, Wang H, Li X, He J. Encoding and retrieval of artificial visuoauditory memory traces in the auditory cortex requires the entorhinal cortex. J Neurosci. 2013 Jun 12;33(24):9963-74.
