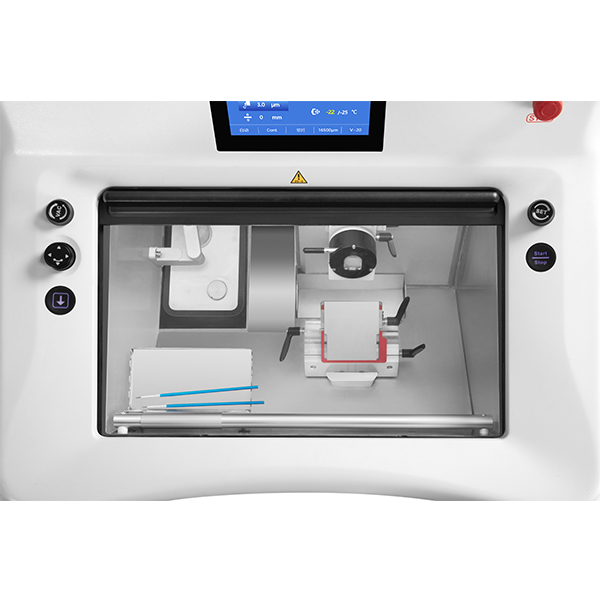

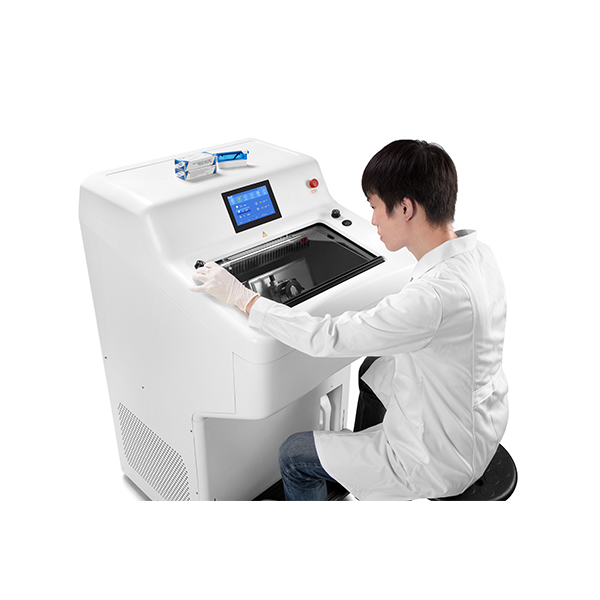

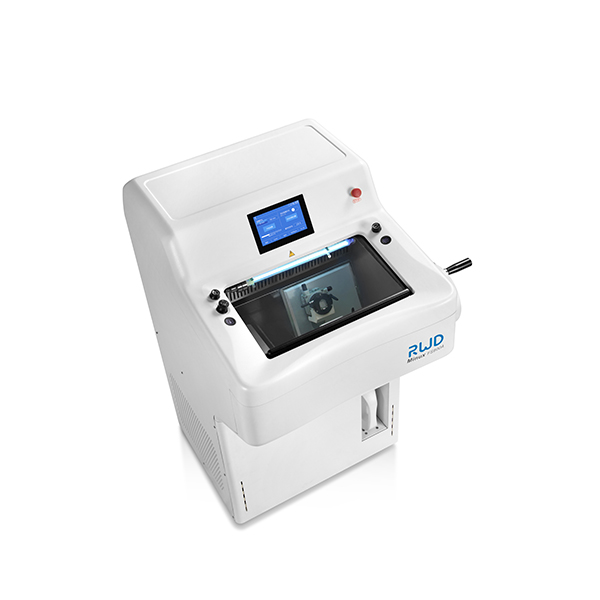

Minux® FS800A Cryostats

With a fully automated, user-friendly operation system, FS800A freeze microtome gives you the confidence to consistently produce reproducible, thin, serial frozen sections of maximum quality. It’s your ideal choice for fast, accurate, and fatigue-free frozen sectioning.

Available Types:
FS800A Auto: Cryostat with motorized sectioning to improve reproducibility.
FS800A Max: Fully automatic cryostat with vacuum cleaning system for whole function.

Technical Specifications

  • Key Benefits
  • Specifications
  • Available Types
  • Applications

Intelligent

  • Four automatic slicing modes can meet the needs of different slicing tissue scenes.
  • Cutting window function ensures the quality as well as improve the efficiency.

Stable

  • Stable temperature: the advanced temperature control system, compressor and cooling system perfectly guarantee temperature stability.
  • high-precision cross rail and screw, five-phase high-resolution sampling motor and horizontal sampling slider made of aviation aluminum, form a precise sampling system to ensure stable slice quality.

Safe

  • UVC disinfection: adopting advanced low-temperature UVC disinfection technology to effectively kill bacteria and viruses, disinfecting the inner surface and the air of the cabinet to reduce the risk of contamination by infectious materials.
  • Waste liquid management system: waste liquid volume will be displayed on the touch screen. Full bottle alarm to prevent waste liquid from flowing out and contaminating the ground.

Efficient

  • Efficient operation: boasting a colorful touch-sensitive screen. Integrating coarse sample feeding, trimming and section switching, and slice parameter adjustment with a joystick to constitute an efficient operating system.
  • Quick positioning: precise positioning system with ±8°visual pointer make it easy to adjust the specimen clamp to the target angle, reducing trimming and sample waste.
  • Automatic sleep and wake-up: save energy, simplify manual operation and reduce waiting time.
  • Sample installation and marking: buckle design, convenient installation and firm fixation. The unique label design of specimen discs makes it easy to record and identify each sample to prevent confusion.
  • Efficient and thorough defrosting: automatic and thorough defrosting for cryo-chamber, specimen head, quick-freeze shelf. Manual defrost is also available, allowing operator to defrost partly to improve efficiency.
Model FS800 Semi-Automated FS800A Automated
Section thickness setting range: 0.50 – 100 µm
Trimming section thickness setting range: 1 – 800 µm
Electric sectioning speed: 0-1800µm adjustable
Specimen retraction: 0-250μm ajustable
Specimen feed: 28mm
Vertical stroke: 70mm
Specimen orientation with zero position horizontal/vertical rotation: X/Y axis 8°
Number of refrigerated sites: 15
Number of fast cooling sites: 2
Freezer refrigeration temperature: 0℃~-35℃
Sample head minimum cooling temperature: -50℃
Fully automated and semi- automated mode switch
Emergency stop button
Cut window function
Slice speed selection
Multiple slice modes
Pedals(optional)
Model Type UVC disinfection Vacuum Specimen cooling system Auto section note
FS800A Auto Cryostat with motorized sectioning to improve reproducibility.
Max  Fully automatic cryostat with vacuum cleaning system for whole function.
  • Pathological diagnosis
  • Biological research
  • Neuroanatomical research
  • Pharmaceutical research
