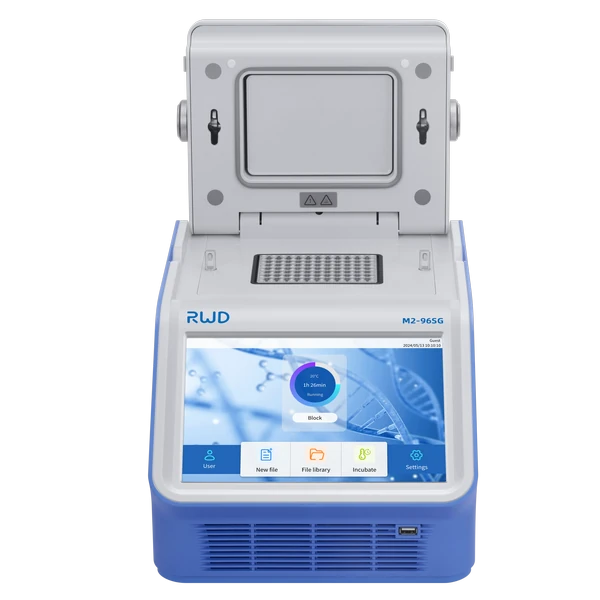

| Model | M2-96SG |
| Block Type | 96-well aluminum alloy sample block |
| Display | 10.1-inch HD touch screen, 1280 × 800 pixels |
| Compatible Consumables | 0.1/0.2 mL single tube, 8/12-strip tubes, skirtless & semi-skirted PCR plates |
| Block Temperature Range | 0–105°C |
| Heated Lid Temperature Range | 30–115°C |
| Max. Temperature Ramp Rate | 6°C/s |
| Temperature Control Mode | Block / Tube |
| Temperature Display Resolution | 0.1°C |
| Temperature Uniformity | ≤ ±0.2°C |
| Temperature Accuracy | ≤ ±0.1°C |
| Gradient Type | 12-column linear / conventional temperature gradient |
| Gradient Temperature Range | 30–105°C |
| Gradient Delta Range | 0.1–42°C |
| Program Storage | 200,000 protocols (unlimited expansion via USB drive) |
| Max. Steps per Program | 40 steps (supports nested PCR) |
| Max. Cycles per Program | 200 cycles (up to 100,000 under nested cycling) |
| Time Increment / Decrement | ±(1 s–600 s) (for Long PCR) |
| Temperature Increment / Decrement | ±(0.1–10.0°C) (for Touchdown PCR) |
| Real-Time Temperature Curve | Real-time recording of heated lid and block temperature |
| GLP Compliance | Logs all running steps; GLP report exportable |
| User Access Control | Three-level permissions: Guest, User, Administrator |
| Tm Calculator | Calculate primer Tm values |
| Screen Lock | Password / password-free lock |
| Power Failure Protection | Auto-resume unfinished run after power recovery |
| Email Alert | Auto email notification upon run completion |
| APP Monitoring | Simultaneous monitoring of up to 250 instruments |
| Communication Interface | USB 2.0, WiFi |
| Power | 100–240 VAC, 50/60 Hz, 600 W |
| Dimensions (W × D × H) | 270 × 385 × 255 mm |
| Net Weight | 10 kg |
