ThermoStar Homeothermic Monitoring System

  • The new generation of Thermostar temperature maintenance device USES a 4.3-inch color LCD touch screen, beautiful appearance, lightweight, easy to operate, real-time display of temperature measurement, temperature setting, heating state, running state, fault warning and other functions, and can give two small animals at the same time, and independent operation. The main control module monitors the temperature of heating pad and anal temperature probe in real time, and the independent circuit controls the heating pad and anal temperature probe respectively to achieve double safety protection, ensuring the stability and safety of the instrument.

Technical Specifications

  • Features
  • Technical Specifications
  • Model information
  • 3-inch color LCD touch screen, beautiful appearance, lightweight, easy to operate
  • Real-time display of measuring temperature, setting temperature, heating state, running state, fault warning and other functions
  • Real-time monitoring of heating pad and probe temperature, with circuit control to achieve dual safety protection
  • Double channel display interface, which can keep two animals warm at the same time and operate independently
  • Display the working status progress bar of heating pad in real time, and monitor the working status of channel: IDLE, WARNING, STANDBY and WORKINIG
  • Fast temperature rise, high temperature control precision, set range of 20-45℃, resolution of 0.1℃, and can switch between Celsius and Fahrenheit
  • Various alarm information can be set, such as high and low limit temperature (±1℃), maximum temperature (50℃), probe, heating pad, sound and indicator light can be freely opened and closed, and can choose one-button operation;
  • High sensitivity temperature probe, diameter 1.5mm, rod length 30mm, line length 150cm
  • Silica gel heating pad, high temperature resistant, easy to clean, with 3 different sizes and specifications of heating pad, suitable for different experimental platforms;
  • Power supply: 100-240 V, 50/60 Hz
  • Control unit size: L205 x W148 x H80 mm
  • Weight of control unit: 1.3kg
Complete system Cat.NO Product Description Remarks
Complete system 69020 ThermoStar Temperature Controller,69023 pad incl. A heating pad (69023)and a temperature probe (69022)incl.
69026 ThermoStar Temperature Controller,69024 pad incl. A heating pad (69024)and a temperature probe (69022)incl.
69027 ThermoStar Temperature Controller,69025 pad incl. A heating pad (69025)and a temperature probe (69022)incl.
Temperature probe 69022 temperature probe 1.5mm diameter, 30mm rod length,150 line length(Rat/mouse)

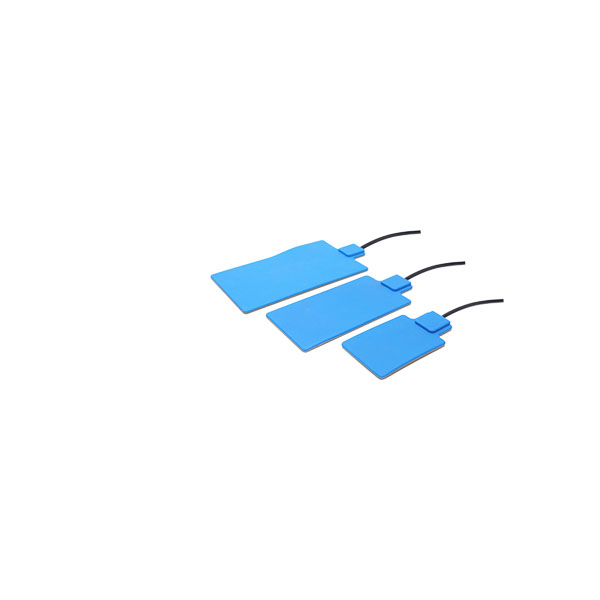

Heating pad 69023 Heating Pad-12.0X20.5cm
69024 Heating Pad-9.0X17.0cm
69025 Heating Pad-7.0X10.0cm
