RWD High-Speed Benchtop Refrigerated Centrifuge provides intelligent centrifugation, adapting various applications from micro to medium throughput with a speed up to 18,000 rpm (31,152×g). Offer a broad selection of rotors and adaptors (swing-bucket rotors and fixed-angle rotors) to meet different customers’ needs.

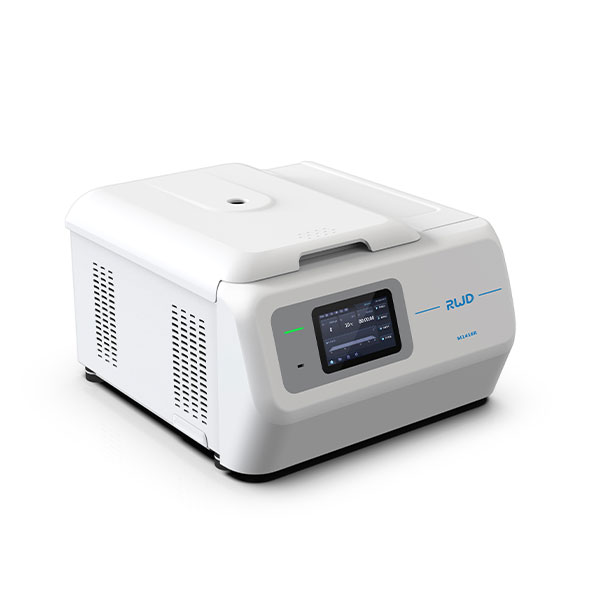

M1416R centrifuge is a refrigerated model with the speed up to 18,000 rpm (31,152×g), adapting various applications from micro to medium throughput. The capacity of M1416R ranges from 24 x 2mL to 4 x 400mL, and the plate rotor also accommodates PCR and deep-well plates. In addition, equipped with a 7-inch touch screen, M1416R provides visual operation and a personalized account management system ensuring efficient and quality control.
Abundant accessories

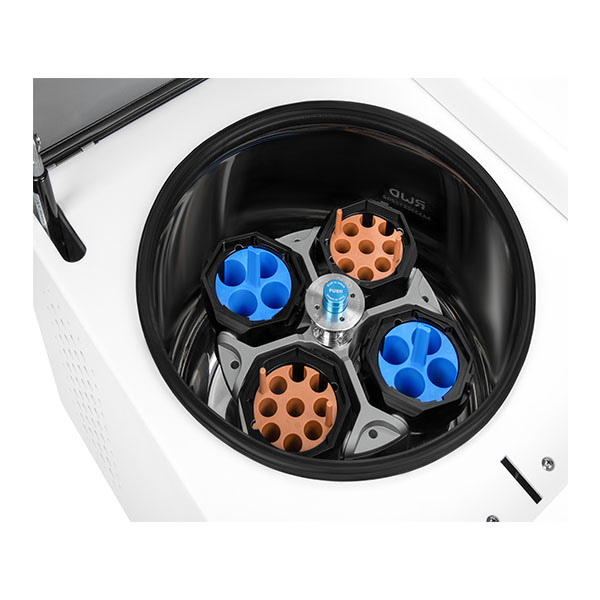

➢Self-locking rotors enable non-tools required installation and removal and exchange in 3 seconds ➢Multi-purpose device equips with various rotors and adaptors
Ergonomic operation
➢Scheduling reservations provide the pre-cooling function for organized experiments
Various guarantees
➢Static rotor identification function for maximum operational safety
Multipurpose function
➢More than 100 pre-program setting storage with customized steps achieve continuous centrifuge
| Parameters | Description |

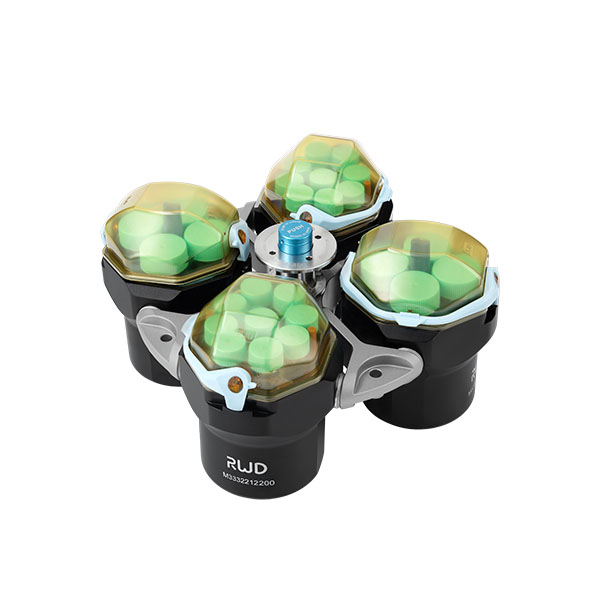

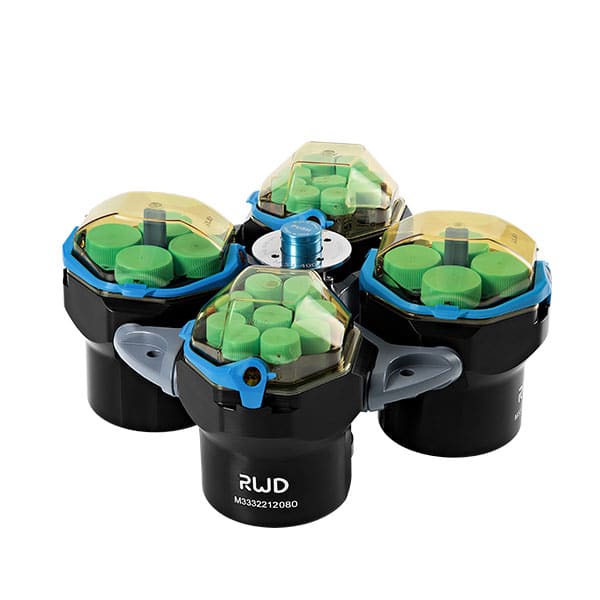

| Swing-out Rotor | |
| Maximum Capacity | M-S4-400-P, 4*400mL |
| Maximum Speed | M-S4-180WS, 6300rpm |
| Maximum RCF | M-S4-180WS, 7188 x g |
| Fixed-angle Rotor | |
| Maximum Capacity | M-F6-100CF，6*100mL |
| Maximum Speed | M-F24-2QG，18,000rpm |
| Maximum RCF | M-F24-2QG，31,152 x g |
| Details | |
| Temperature range | -10℃ to +40℃ |
| Noise | 56dB(A) |
| Acceleration/Deceleration ramps | 9 /10 |
| Program Storage | 100 programs with the ability to do step programming |
|
Dimension (W*D*H)
|
620mm*670mm*400mm
|
|
Weight (with rotor)
|
96.5kg |
Order Information
| Model | Product Description |
| M1416R | High-Speed Benchtop Refrigerated Centrifuge (Without Rotor) |
Rotor Information
| Model | Product Description | Maximum Speed (rpm) | Maximum RCF(xg) |
| M-S4-400-P | 4*400mL Swing-out rotor | 5,000 | 4,696 |
| M-S4-400-CP | 4*400mL Swing-out rotor (incl. 4*M-A4-50 and 4*M-A9-15 adaptors) | 5,000 | 4,696 |
| M-S2-DWP-P | 2*3 Standard 96-well plate (2*1 DWP) | 4,000 | 2,272 |

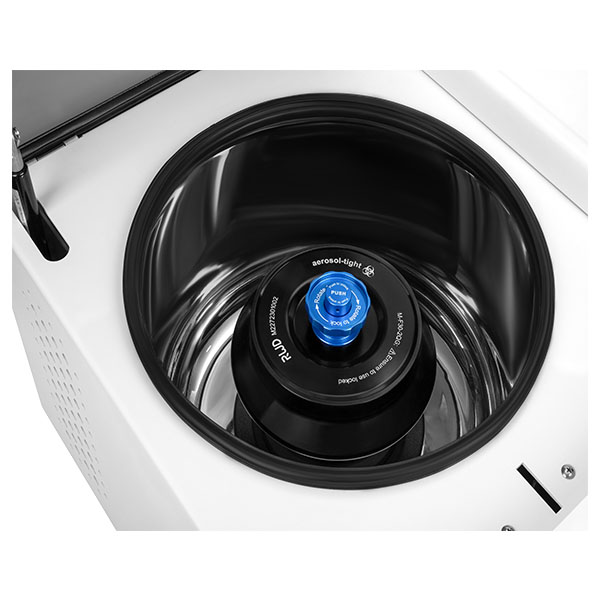

| M-F24-2QG | Aerosol-tight Lid , 24×2 mL tube quick- lock rotor | 18,000 | 31,152 |
| M-F30-2QG | Aerosol-tight Lid , 30×2 mL tube quick- lock rotor | 15,200 | 25,830 |
| M-F6-50QG | Aerosol-tight Lid , 6×50 mL tube quick- lock rotor | 12,100 | 20,133 |
| M-F30-15C | 30×15 mL tube clinic rotor | 5,650 | 4,997 |
| S4-200-P | 4*200mL Swing-out rotor 4*200mL Swing-out rotor | 5500 | 5580 |
| M-F48-2QG | Aerosol-tight Lid , 48×2 mL tube quick- lock rotor | 15,200 | 25,314 |
| M-F18-5QG | Aerosol-tight Lid , 18×5 mL tube quick- lock rotor | 15,000 | 24,652 |
| M-F8-50CF | 8×50 mL tube carbon fiber rotor | 14,500 | 24,446 |
| M-F14-50CF | 14×50 mL tube carbon fiber rotor | 10,000 | 17,105 |
| M-F6-100QG | Aerosol-tight Lid , 6×100 mL tube quick- lock roto | 10,350 | 15,090 |
| M-F6-100CF | 6×100 mL tube carbon fiber rotor | 15,000 | 24,652 |
| M-S2-400M | Multi-function rotor | 7,200 | 4,297 |
| M-S4-180WS | 4*180mL Swinging bucket rotor | 6,300 | 7,188 |
