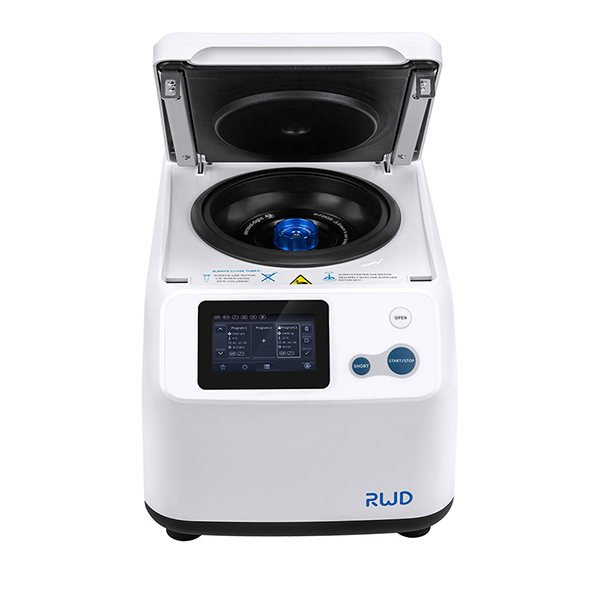

M1324R High-Speed Microcentrifuge

M1324R Microcentrifuge (Refrigerated optional), at speeds up to 15,000 rpm, is ideal for life science research and production in industries such as biology, chemistry, materials science, bioengineering, and biopharmaceuticals. The compact design can be fit to your lab’s capacity needs, even in the smallest laboratory or cold room.

Featured with touchscreen controls and one-button recall of up to 12 stored custom run programs, M1324R can bring you increased efficiency and user comfort. The unique, closed rotor design of this small microcentrifuge protects your samples from heat generated by the motor.

Also,multiple-abnormal alarms including Overspeed, overtemperature, as well as unbalance ensure the safety of the user.

Technical Specifications

  • Features & Benefits
  • Specifications
  • Applications
  • Order Information

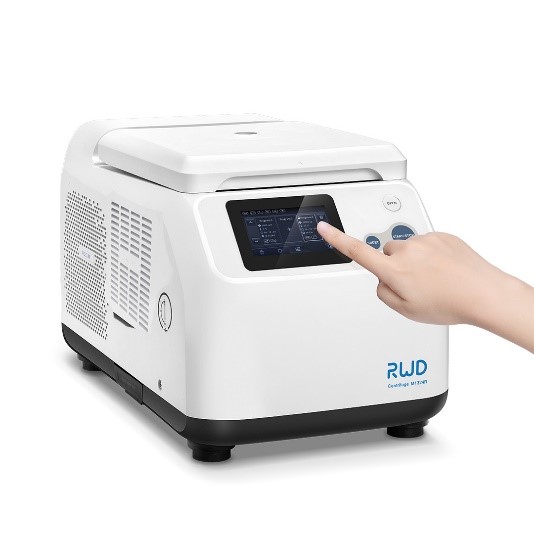

Smart simple touchscreen functionality

Easily set or change set-points on a 4.3-inch touch screen menu. The intelligent touch screen interface is designed to provide complete data visibility to create all needed setpoints like temperature, speed, and time spun.

Ease of use

Beyond being easy to set everything about the unit from the rotor placement to moving from room temperature to refrigerated mode had been designed with user ease in mind.

Quick refrigeration (optional)

The temperature control range is from -10 C° to +40 C°. It only takes 8 Minutes to get from room temperature to 4 C°. Refrigeration is optional as a non refrigerated unit is also available to purchase.

Preprogram and save time

The display allows users to preprogram up to 12 programs to save time when doing repetitive tasks

Consider capacity and speed

The unit is able to spin up to 24 X 1.5/2.0mL tubes. This is higher than most units at 18 tubes and can greatly increase throughput. Lightweight rotors are designed to provide acceleration up to 21,130 x g.

Safety in mind

Multiple abnormal alarm including over-speed, over-temperature, as well as unbalance ensure the safety of the user. While mentioning it has a secure lid seems almost trivial it is always important to consider as it as the easiest way to achieve the highest safety conditions in microcentrifugation. It is a simple thing that can save a life should anything ever go wrong along the way.

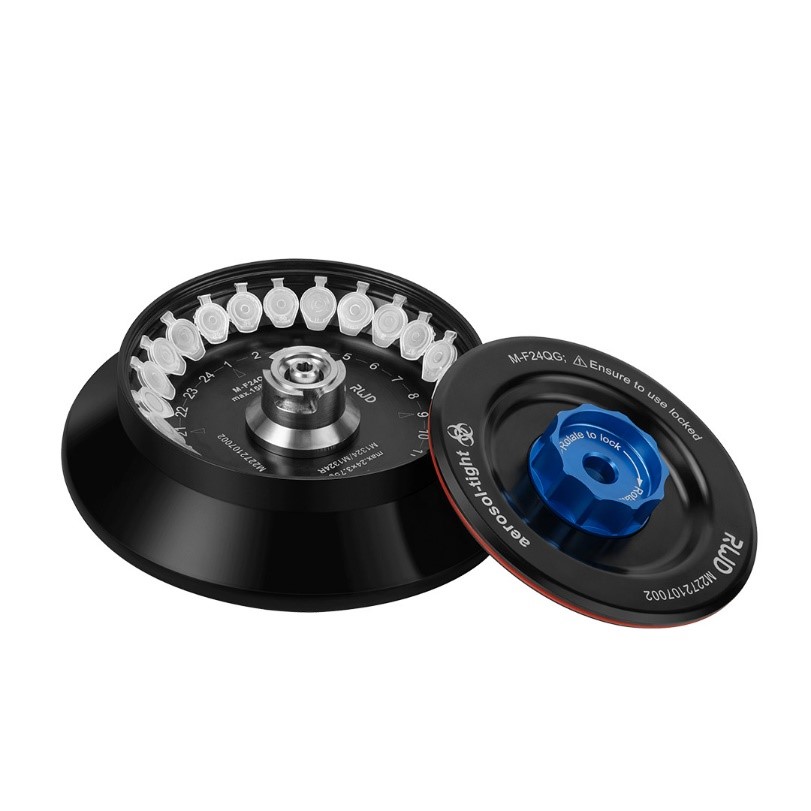

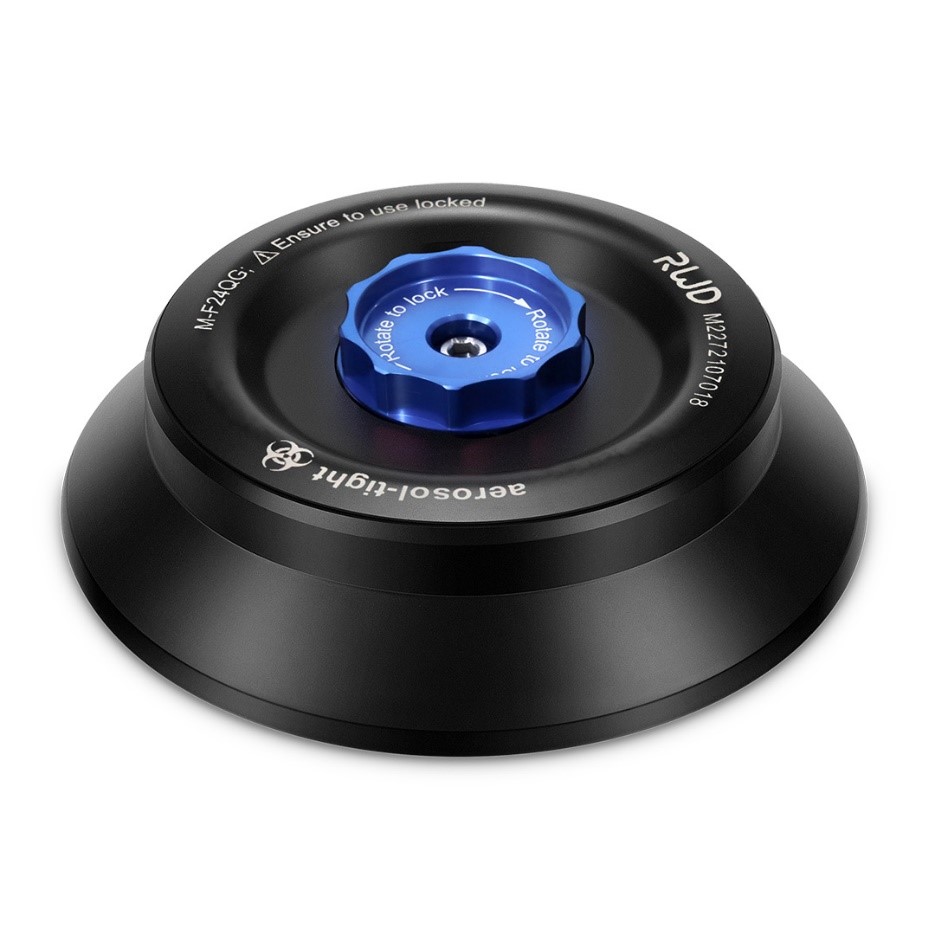

Quick-Lock rotor

Standard aerosol-tight rotor  closes with only a 1/6 turn. It  with aerospace-grade aluminum alloy withstands high temperature sterilization and avoids biohazards.

Parameters Description
Max. Speed 15000rpm
Max. RCF 21130×g
Max. Capacity 2mL×24
Display Touch screen
Program 12
Temperature Control -10℃ to 40℃
Noise Level <54dB(A)
Dimension (W*H*D) 304mm*304mm*517mm
Weight(with rotor) 33kg
  • Application for this unit include nucleic acid and protein preparation
    • Pelleting
    • Extractions
    • Purifications
    • Concentrations
    • Phase separations
    • Receptor binding
    • Rapid sedimentation of precipitates, particulates, and cell debris
Model Product Description
M1324R Refrigerated Microcentrifuge (Rotor with Aerosol-tight Lid)
M-F24G Aerosol-tight Lid, 24×1.5/2 mL tube rotor
M-F24 24×1.5/2 mL tube rotor
M-F4PCR 4×PCR tube rotor
M-F18Kit 18×Spin column rotor
M-F24QG Aerosol-tight Lid, 24×1.5/2.0 mL tube Quick- Lock rotor
M-F24Q 24×1.5/2 mL tube Quick- Lock rotor
