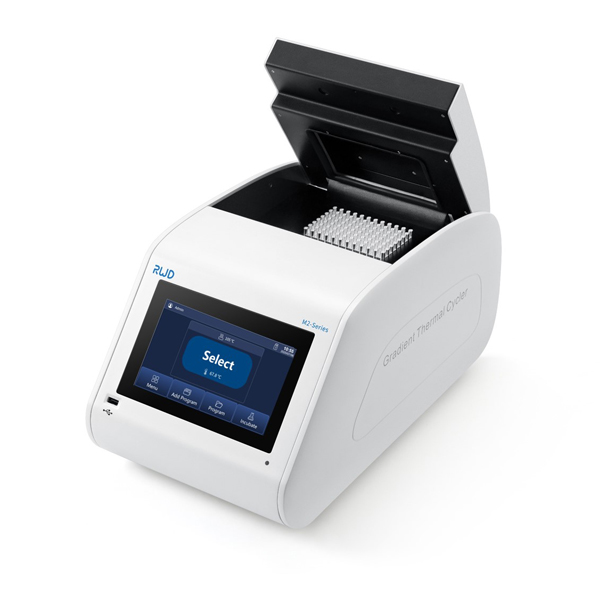

M2-96G Gradient Thermal Cycler

The M2-96G gradient thermal cycler provides precise temperature control and an intelligent user operating system to achieve rapid and specific amplification of target DNA fragments. With temperature gradient function, 12 groups of gradient can be realized at one time to optimize PCR protocol.

Get a Quote Request a Demo

Overview

The 96-well M2-96G PCR thermal cycler provides temperature gradient function and 12 groups of gradient can be realized at one time to optimize PCR protocol. With 7 inch touch screen, personalized account could be edited to enable intuitive and quick programming.

It is widely used in molecular biology, microbiology, genetics, cell biology, food science and agronomy to carry out experimental research such as molecular cloning, gene expression analysis, genotype identification, sequencing, and pathogenic microorganism analysis

Advantages

Intelligent and efficient linear gradient function

12 linear gradients in the same run allow to optimize the ideal annealing temperature

Fast ramping for PCR runs

Fast ramp rate of up to 6℃/s to realize efficient PCR runs

Multiple personalized account management

Personalized account management system provides organized programs and unwanted changes

Simple and efficient operations

Processes can be imported and synchronized via USB ports and achieve multi-machine collaborative work.

Specifications

Description M2-96G
Sample 96×0.2 ml/0.1ml tubes or 1×96-well plate
Reaction volume 10~80 μL

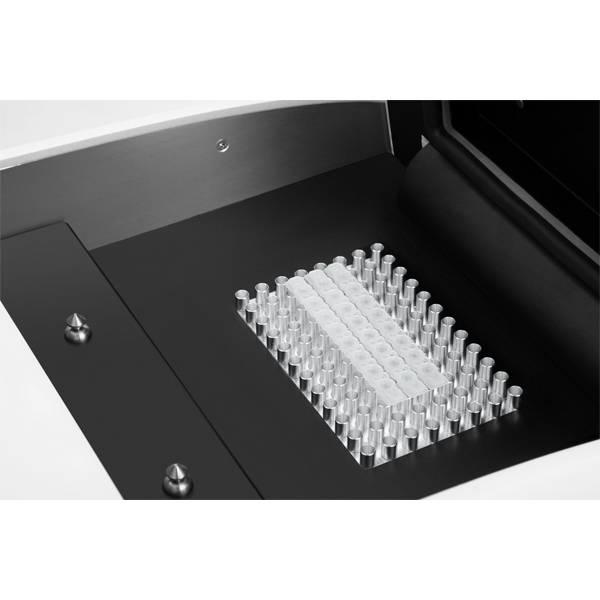

Heating block 96-well
Temperature control range of the block 0~100℃
Gradient capability Yes
Gradient range 30~100℃
Lid temperature range 40~100℃
Temperature accuracy ±0.25℃ (35~100℃)
Temperature Uniformity ≤±0.3℃ (After reaching a constant temperature of 95℃ for 20s)
Max. heating and cooling rate 6.0℃/s; 4.5℃/s
Average heating and cooling rate 4.5℃/s; 3.5℃/s
Display 7 inch LCD touch screen
Max. amount of storage 2000
Max. number of program cycles 99
Max. number of program steps 64
Inc/Dec temp input range ±0.1-5℃
Inc/Dec time input range ±1-240s
Power-off protection Yes
Interface RS232、USB、Network port
Dimensions(W *D*H) 264mm*470mm*259mm
Weight 16.5kg
Power supply 220V/50HZ; 110V/60HZ
Max. Power consumption 925W
