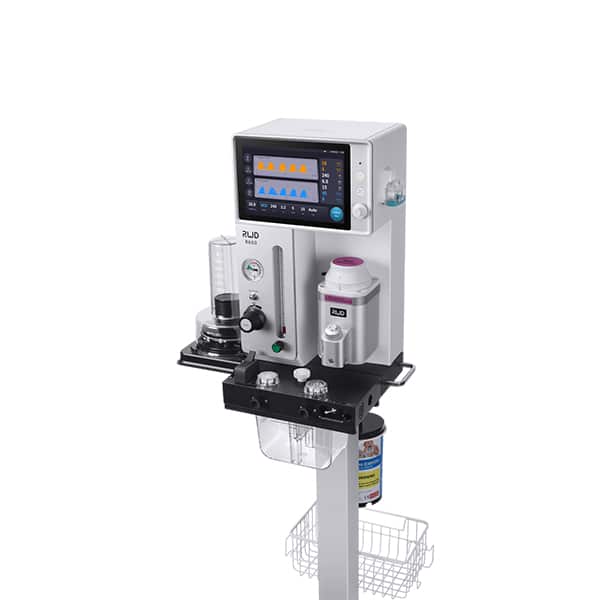

    R660 Respiratory Anesthesia Machine

    Integrated respiratory anesthesia design, balancing aesthetics and functionality, meeting the ventilation and anesthesia needs of animals while saving space.R660 is committed to leading a new experience in animal anesthesia. It’s applicable to clinical anesthesia of dog, cats, pigs, monkeys, rodents, reptiles, birds etc.

    Quote

    Four ventilation modes:  VS, VCV, PCV, and SIMV modes are standard, reduce respiratory resistance, support multiple surgery types.

    10.1-inch touch screen:  A 10.1-inch ultra-clear touch screen, visible within 2 meters.

    Dual-circuit airway pressure monitoring:  The color-segmented pressure gauge shows the pressure of both rebreathing and non-rebreathing circuits, preventing small animals from airway trauma.

    Technical Specifications

    • Advantage
    • Technical Parameter

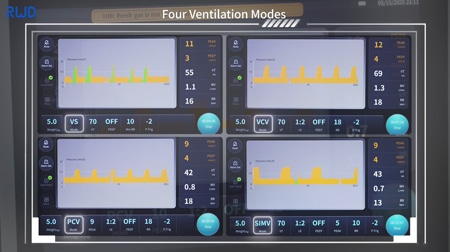

    1. Four ventilation modes:  VS, VCV, PCV, and SIMV modes are standard, reduce respiratory resistance, support multiple surgery types.

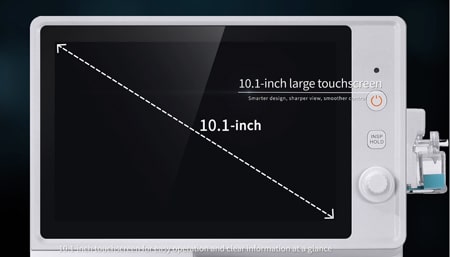

    1. 10.1-inch interactive intelligent touch screen: Delivering veterinarians the ultimate visual experience. It’s clearly visible from up to 2 meters away

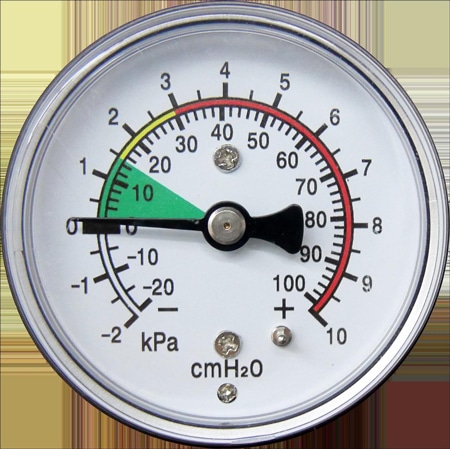

    1. Color airway pressure gauge: The first design in the industry, supports circulating and non-circulating dual breathing circuit pressure monitoring, protecting the safety of animals of different sizes
    1. Head-up visibility: The functional layout is simple and user-friendly, and all key components are located on the front panel, which is clearly visible. You can see them within 2 meters, making it easier to read during surgery.

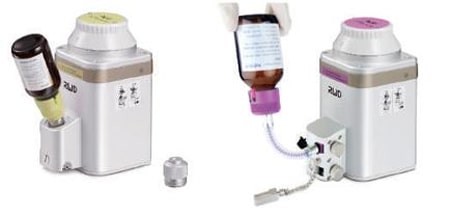

    1. Two safe ways to add medicine: Easy-fill as standard and Key-fill as optional, two safer ways to add medicine, greatly reducing the risk of drug leakage, leading the new trend of safe drug addition in the industry
    1. High-precision vaporizer : Full factory inspection, each vaporizer has a separate quality inspection report, safe output is guaranteed
    1. One-button principle: One-button switching of circuit switch, one-button closing function of APL valve, one-button switching of mechanical/manual ventilation

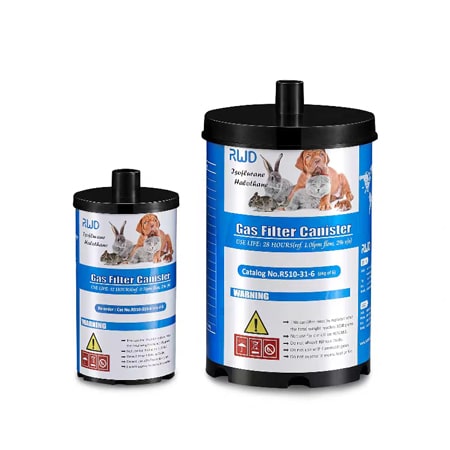

    1. High-quality anesthetic waste gas tank: effectively absorbs isoflurane and sevoflurane in anesthetic waste gas to ensure veterinary safety
    1. Save space, integrated installation of monitors, oxygen concentrators and other supporting equipment
    Parameters
    Data
    Width × Depth × Height (including mobile stand)
    ≤541×354×1557mm
    Weight (including bellows assembly)
    ≤37kg
    touchscreen
    10.1-inch screen, screen pixels: 1028×800
    Weight Range
    0.4～150kg
    Peak airway pressure
    5～50 cmH2O
    Respiratory rate
    2～60 bpm
    I/E ratio
    1:1.0～1:4.0
    Tidal volume
    4～1500ml
    Trigger pressure
    -10 cmH2O～-0.2 cmH2O
    Trigger flow rate
    0.2L/min～15.0L/min
    PEEP
    3～20 cmH2O
    Support pressure (only SIMV has this parameter)
    3～50 cmH2O
